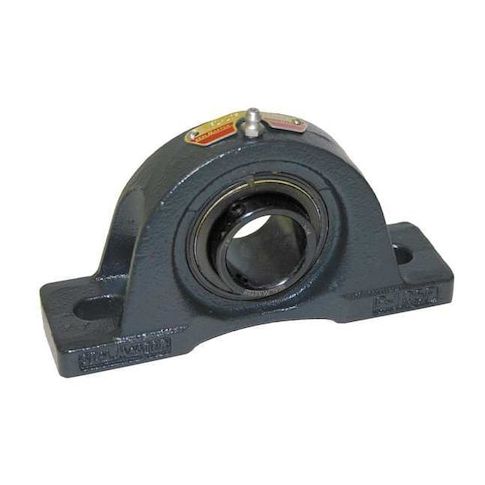

Pillow Block Bearing, Cast Iron, Set Screw Locking, Ball Insert, 3/4 in Dia, Alloy Steel MPN:NPL-12
Pillow Block Bearing, Cast Iron, Set Screw Locking, Ball Insert, 3/4 in Dia, Alloy Steel
This Pillow Block Bearing from Sealmaster is a reliable and versatile solution for a variety of applications, including industrial machinery, conveyor systems, and heavy-duty equipment. The bearing's alloy steel insert and cast iron housing provide exceptional strength and durability, while the double-sealed design ensures long-lasting lubrication and protection from contaminants. With a temperature range of -20 to 220 degrees Fahrenheit, this bearing can withstand even the most demanding environments. Its compact size and bolt-through mount make it easy to integrate into existing systems, making it an ideal choice for manufacturers and engineers seeking a high-performance bearing solution.
Top product features:
- Radial ball bearing allows for smooth rotation and reduced friction
- Double sealed closure prevents lubricant from leaking out and maintains bearing performance
- Cast iron housing provides a durable and long-lasting structure for the bearing insert
Top product applications:
- Machine tool spindle bearings
- Conveyor belt rollers
- High-speed printing equipment
Pillow Block Bearing, Base Height 0.44 in, Base Width 1.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 1/4 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.5 in, Overall Length 5 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.80
- Package Height: 5.60
- Package Weight: 1.75
Product info last updated on February 11, 2026 1:22pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
