4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking MPN:MSF-16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8987876

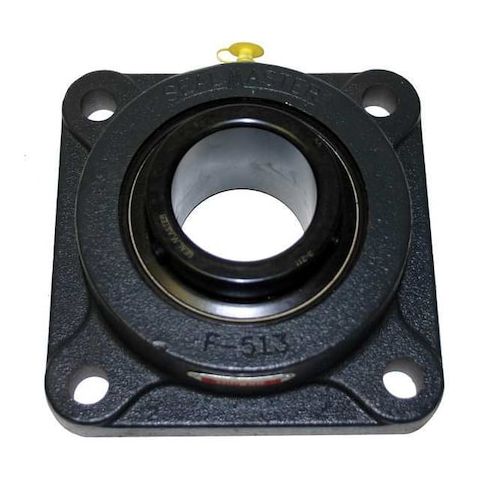

4 Mount Holes, Square, Flange Mount Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking
The Sealmaster 4-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. Its 1-inch cylindrical bore and radial ball bearing design provide smooth operation and long lifespan. Suitable for use in temperatures between -20°F and 220°F, this bearing can withstand high speeds up to 5,450 RPM. Its fixed expansion type and double-sealed closure ensure minimal maintenance and reduced downtime. Ideal for use in heavy machinery, equipment, and manufacturing processes, this bearing offers improved performance, increased efficiency, and reduced maintenance costs. Its compact square housing and four bolt design provide easy installation and secure mounting.
Top product features:
- Double sealed closure for protection from contamination and debris
- Cylindrical bore diameter of 1 inch for precise fit and minimal clearance
- Expansion type is fixed, providing stable and consistent performance under varying loads
Top product applications:
- Pump shaft bearing
- Conveyor belt pulley bearing
- Gearbox bearing
4 Bolt Flange Bearing, Back Side to Center Width 0.703 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UCX05-16, Lubricant Material NLGI #2 Equivalent, Maximum Speed 5,450 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 1/4 in, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 4.70
- Package Height: 1.80
- Package Weight: 2.85
Product info last updated on February 12, 2026 6:22pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
