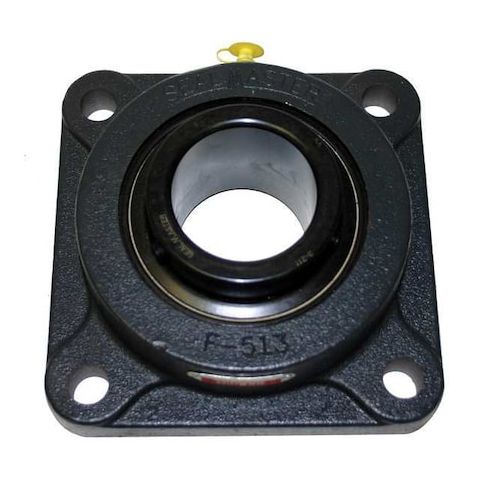

4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 4 in Dia, Cast Iron, Set Screw MPN:MSF-64
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8379244
4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 4 in Dia, Cast Iron, Set Screw
The Sealmaster 4-Bolt Flange Bearing is a reliable and durable solution for heavy-duty applications. Suitable for use in harsh environments, this bearing features a radial ball bearing insert made of alloy steel, providing excellent load-carrying capacity and resistance to wear. The double-sealed design ensures long-lasting lubrication and protection from contamination. With a maximum speed of 1,700 RPM and operating temperature range of -20 to 220°F, this bearing is ideal for use in industrial equipment, machinery, and heavy machinery applications, including pumps, gearboxes, and conveyor systems. Its compact design and fixed expansion type make it easy to integrate into new or existing systems.
Top product features:
- The bearing is double sealed for protection against contaminants.
- The bearing has a fixed expansion type, providing stability and reducing vibration.
- The bearing has a maximum operating temperature of 220 Degrees F, allowing for use in high-temperature applications.
Top product applications:
- Agricultural equipment
- Construction machinery
- Pumps and compressors
4 Bolt Flange Bearing, Back Side to Center Width 2.328 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UCX20-64, Lubricant Material NLGI #2 Equivalent, Maximum Speed 1,700 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 8 1/8 in, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 6.63
- Package Height: 11.00
- Package Weight: 55.10
Product info last updated on March 13, 2026 4:48pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
