Flange Bearing, 4-Bolt, Ball, 1-5/8" Bore MPN:SF-26

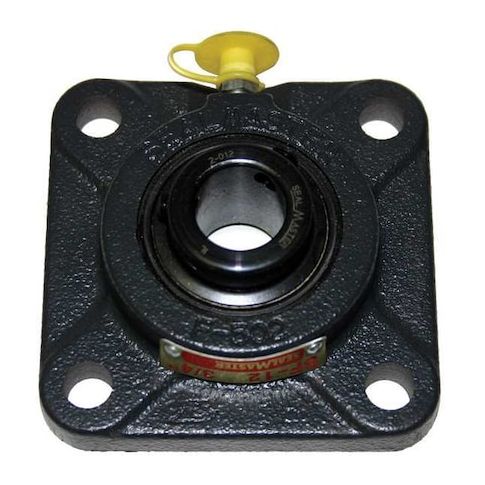

Flange Bearing, 4-Bolt, Ball, 1-5/8" Bore
The Sealmaster 4-Bolt Flange Bearing is a heavy-duty solution for demanding applications. Its alloy steel bearing insert and cast iron housing provide exceptional strength and durability, while the radial ball bearing design ensures smooth operation and long lifespan. Suitable for use in temperatures ranging from -20°F to 220°F, this bearing can withstand extreme conditions. Its fixed expansion type and double-sealed closure prevent contamination and maintain lubrication. Ideal for use in industrial machinery, equipment, and power transmission systems, this bearing offers reliable performance and easy installation. Its compact design and standard mount holes make it easy to integrate into existing systems.
Top product features:
- Double sealed closure provides protection against contamination and debris
- Cylindrical bore allows for smooth rotation and reduced friction
- Radial ball bearing design enables efficient load distribution and reduced wear on surrounding components
Top product applications:
- Pump and Motor Mounting
- Conveyor and Machinery Mounting
- Gearbox and Power Transmission Mounting
4 Bolt Flange Bearing, Back Side to Center Width 0.828 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 5/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC209-27, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,800 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 1/8 in, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.90
- Package Width: 6.30
- Package Height: 2.40
- Package Weight: 6.05
Product info last updated on February 2, 2026 8:33am UTC
Category: Bearings, V-belts and Power Transmission Equipment
