Flange Bearing, 4-Bolt, Ball, 1-13/16" Bore MPN:SF-29
Flange Bearing, 4-Bolt, Ball, 1-13/16" Bore

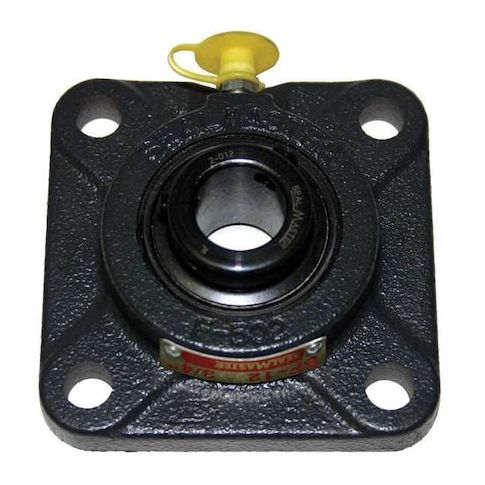

The Sealmaster 4-Bolt Flange Bearing is a heavy-duty solution for applications requiring high-speed and temperature resistance. Its alloy steel bearing insert and cast iron housing provide exceptional durability and strength, while the radial ball design ensures smooth operation. Suitable for use in industrial machinery, agricultural equipment, and construction vehicles, this bearing can withstand temperatures from -20 to 220 degrees F and speeds up to 3,550 RPM. Its double-sealed design and NLGI #2 equivalent lubricant ensure long-lasting performance and reduced maintenance, making it an ideal choice for demanding applications where reliability is crucial.
Top product features:
- Double sealed closure provides a secure and reliable environment for the bearing insert.
- The bearing insert is made of alloy steel for durability and resistance to wear.
- The bearing is a radial ball bearing, designed to support radial loads and provide smooth rotation.
Top product applications:
- Pump and motor mounting
- Conveyor and transmission shaft support
- Gearbox and machinery support
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 13/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,550 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 3/8 in, Number of Mount Holes 4, Overall Height 5 5/8 in, Overall Length 5 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 2.50
- Package Height: 6.50
- Package Weight: 6.40
Product info last updated on January 30, 2026 10:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
