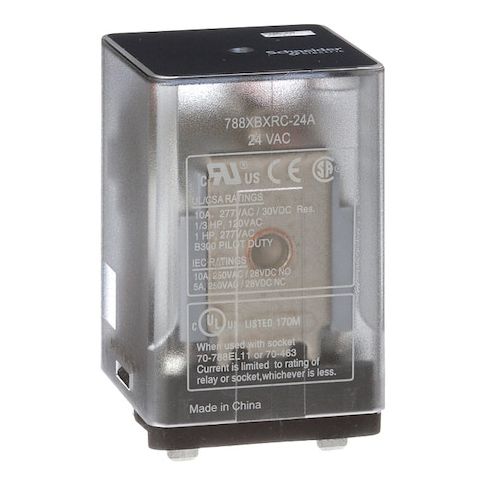

Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal MPN:788XBXRC-24A
Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal
This general-purpose relay is a versatile solution for a wide range of applications, from industrial control systems to commercial equipment. With a 10A current rating and 8-pin design, it provides reliable switching for high-power devices. Suitable for use in environments with 24V AC coil voltage, it features a DPDT contact form and mechanical flag status indicator. The relay's compact design, with a body depth of 1.97 inches and height of 1.4 inches, makes it easy to integrate into existing systems. Ideal for applications such as lighting control, HVAC, and more, this relay offers a reliable and efficient solution for controlling high-power loads.
Top product features:
- Plug-in design allows for easy installation and removal of the relay
- DPDT contact form enables the relay to switch two circuits simultaneously
- Blade terminal electrical connection provides a secure and reliable connection point
Top product applications:
- Home Automation Systems
- Industrial Control Panels
- Security Systems
General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.97 in, Body Height 1.4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.60
- Package Height: 1.80
- Package Weight: 0.17
Product info last updated on March 22, 2026 8:12pm UTC
Category: Industrial Electrical Controls and Automation
