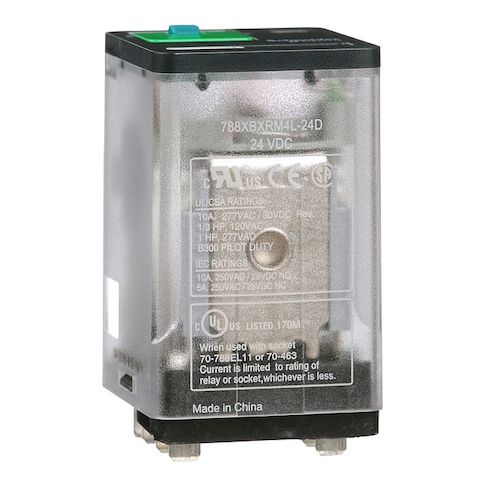

Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal MPN:788XBXRM4L-24D
Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal
This plug-in relay from Schneider is a versatile and reliable solution for a wide range of applications. Its 10A current rating and 8-pin design make it suitable for use in various industrial and commercial settings. The relay's DPDT contact form and blade terminal connections provide secure and efficient switching of electrical loads. With a compact square shape and LED status indicator, it's easy to integrate into existing systems. The relay is ideal for use in lighting control, HVAC, and other applications where reliable switching is critical. Its compact size and plug-in design make it easy to install and maintain.
Top product features:
- Plug-in design allows for easy installation and removal of the relay without requiring extensive rewiring.
- The relay has a DPDT contact form, enabling it to switch two separate circuits on and off with a single coil operation.
- The relay features a LED status indicator, providing visual feedback on its operational status.
Top product applications:
- Industrial Automation Systems
- Machine Control Panels
- HVAC Control Systems
General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.17
Product info last updated on February 9, 2026 11:29am UTC
Category: Industrial Electrical Controls and Automation
