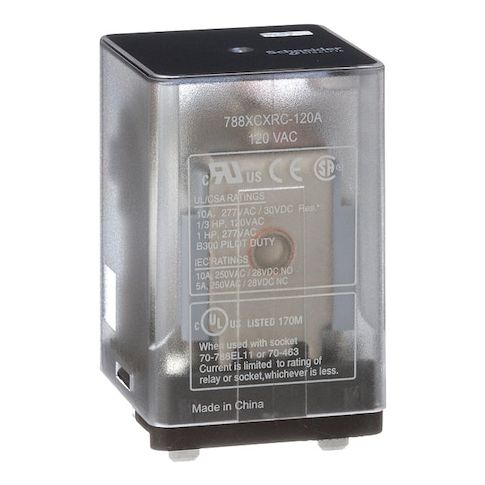

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal MPN:788XCXRC-120A
Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal
The Schneider general purpose relay is a versatile and reliable solution for a wide range of applications, including lighting control, HVAC systems, and industrial automation. Its 10 amp rating and 3PDT contact form make it suitable for high-current applications, while its enclosed sealing and mechanical flag status indicator ensure safe and easy operation. With a compact plug-in design and manual push-to-test method, this relay is easy to integrate into existing systems. Its applications include commercial and industrial facilities, data centers, and manufacturing environments where high-reliability and easy maintenance are critical.
Top product features:
- Plug-in design allows for easy installation and replacement of the relay.
- The relay has a 3PDT contact form, enabling the switching of three separate circuits with a single device.
- The relay has a mechanical flag status indicator, providing a visual signal of the relay's operational status.
Top product applications:
- Industrial Control Panels
- Automotive Diagnostic Equipment
- Medical Equipment
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.97 in, Body Height 1.97 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.18
Product info last updated on February 4, 2026 5:10pm UTC
Category: Industrial Electrical Controls and Automation
