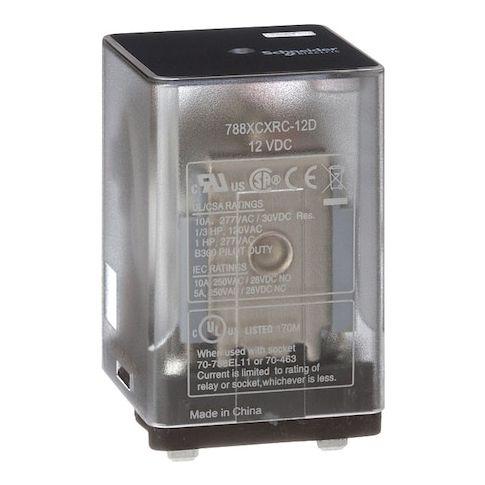

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal MPN:788XCXRC-12D
Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal
This general-purpose relay from Schneider is a reliable and versatile solution for a wide range of applications. With a plug-in design and 10A current rating, it can handle moderate power requirements with ease. The relay features a square base shape and 11 flat pins for secure connections, making it ideal for use in industrial automation, control systems, and machinery. Its mechanical flag status indicator provides visual confirmation of relay operation, while its manual push-to-test method ensures safe and efficient testing. Suitable for use in AC and DC systems, this relay is a great choice for applications requiring reliable switching and control.
Top product features:
- Plug-In design allows for easy installation and removal of the relay
- Has a 3PDT contact form for complex switching applications
- Has a mechanical flag status indicator for visual monitoring of relay operation
Top product applications:
- Motor Control Circuits
- Machine Control Systems
- Industrial Automation Systems
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.97 in, Body Height 1.4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.40
- Package Height: 1.70
- Package Weight: 0.18
Product info last updated on February 2, 2026 12:51pm UTC
Category: Industrial Electrical Controls and Automation
