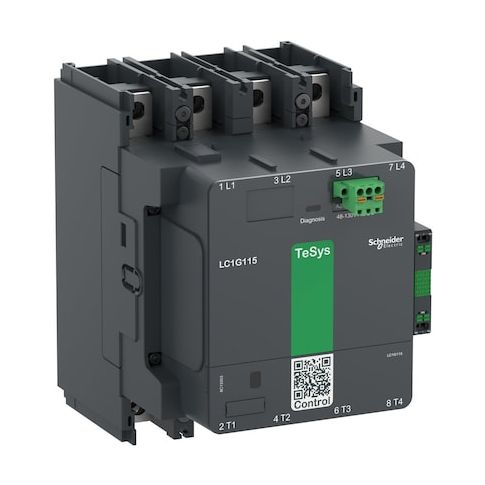

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G1504EHEN

• The IEC Magnetic Contactor is a four-pole, IEC-standard, electrically operated switching device used to control power circuits. It employs an electromagnetic coil rated for operation within specified voltage ranges

• includes auxiliary contacts (1NC/1NO) as specified. It is rated for operation within the specified voltage ranges (48V-130V AC/DC) and has a maximum voltage rating of 1000V AC as per specifications. It is intended for plate mounting with spring-type terminals and is part of the TeSys Giga series.

  - Item: IEC Magnetic Contactor

• - Series: TeSys Giga
• - Poles: 4
• - Auxiliary contacts: 2 (1NC/1NO)
• - Includes Auxiliary Contacts: Yes
• - Coil voltage: 48V-130V AC/DC
• - Frequency: 50/60 Hz
• - Maximum voltage rating: 1000V AC
• - Full load current: Inductive 230 A
• Resistive 275 A
• - IP rating: IP20
• - Embedded surge suppressor: No
• - Mechanical durability: 8,000,000 cycles
• - Operating temperatures: -13°F to 140°F
• - Dimensions (D x H x W): 7.6 in depth, 7.6 in height, 5.63 in width
• - Mounting style: Plate
• - Terminal connection type: Spring Type
• - Phase: Single
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
