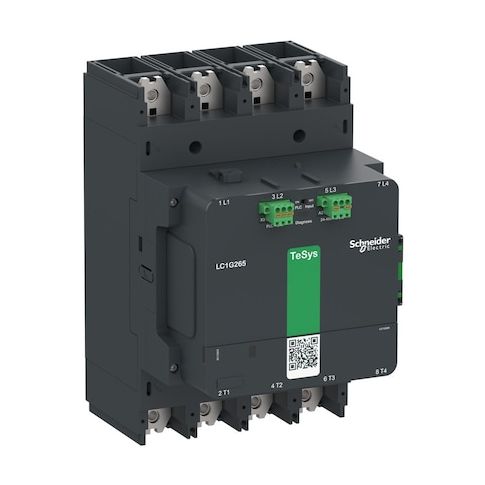

IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 4 P, Spring Type MPN:LC1G2654LSEA
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. With a 4-pole design and spring-type terminal connections, this magnetic switch provides easy installation and maintenance. Suitable for use in AC and DC systems with voltages ranging from 200-500V, this contactor is ideal for industrial control panels, motor control centers, and other high-power applications. Its high current rating and robust construction make it a great choice for demanding environments, while its compact size and IP20 rating ensure safe and reliable operation.
Top product features:
- Provides control of power circuits
- Includes auxiliary contacts for added functionality
- Rated for a maximum continuous current of 340 A (inductive) and 385 A (resistive) under specified conditions
Top product applications:
- Control of power circuits in industrial applications
- Use in power distribution systems for commercial or residential buildings
- Installation in control panels for machinery or equipment
The Schneider Electric IEC Magnetic Contactor is a 4-pole, spring-type magnetic switch that provides control of power circuits. It is configured with auxiliary contacts of 1NC/1NO (2 total) and a coil voltage range of 200–500 V AC/DC, rated for operation within the specified IEC standards.
- Auxiliary contacts: 1NC/1NO (2 total)
- Includes Auxiliary Contacts: Yes
- - Coil voltage: 200–500 V AC/DC
- - Contactor style: IEC
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Rated for a maximum continuous current of 340 A (inductive) and 385 A (resistive) under specified conditions
- - IP rating: IP20
- - Rated for use at voltages up to 1000V AC within specified parameters
- - Has an expected mechanical lifespan based on testing
- actual performance may vary
- - Operating temperature: Designed for operation within the specified temperature range
- - Mounting style: Plate
- - Number of poles: 4
- - Overall dimensions: Depth 4.8 in
- Height 11.42 in
- Width 7.28 in
- - Phase: Single
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Terminal connection type: Spring Type
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.57
- Package Width: 12.60
- Package Height: 10.63
- Package Weight: 23.35
