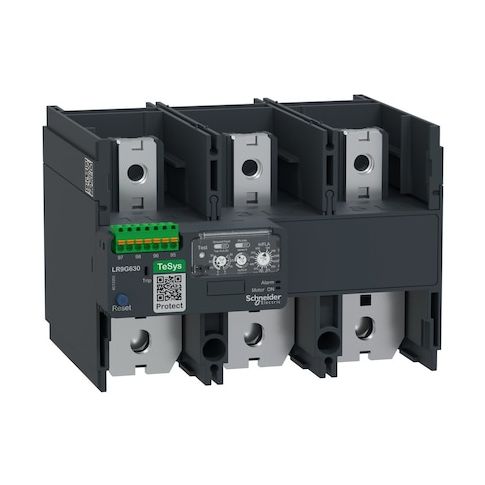

Thermal Overload Relay, 1NC/1NO, 160 A Min current, 630 A Max current, 500V AC MPN:LR9G630
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G910190447
Thermal Overload Relay, 1NC/1NO, 160 A Min current, 630 A Max current, 500V AC
Protect your electrical equipment with the Schneider Thermal Overload Relay, a reliable and efficient solution for single-phase applications. This electronic overload relay provides automatic or manual reset, ensuring seamless operation and minimizing downtime. With a maximum current rating of 630A and a minimum of 160A, it offers precise control over load currents. Suitable for use in a variety of settings, including industrial, commercial, and residential environments, this relay is ideal for applications such as motor protection, HVAC systems, and pumps. Its compact design and easy mounting make it a convenient addition to any electrical system.
Top product features:
- Thermal protection against overload currents up to 630 A
- Electronic overload protection type with a trip class of 5E/30E
- Provides 1NO/1NC auxiliary contact form for control and monitoring purposes
Top product applications:
- Motor Protection
- Industrial Control Panels
- High-Current Motor Control Circuits
Thermal overload relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 630 A, Minimum Overload Relay Current Setting 160 A, Trip Class 5E/30E, Maximum Voltage Rating 500V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Box Lugs, Compatible with Series TeSys Giga, Relay Style IEC, Overload Protection Type Electronic, Phase Single
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.75
- Package Width: 11.81
- Package Height: 11.81
- Package Weight: 10.30
Product info last updated on February 4, 2026 8:56am UTC
Category: Industrial Electrical Controls and Automation
