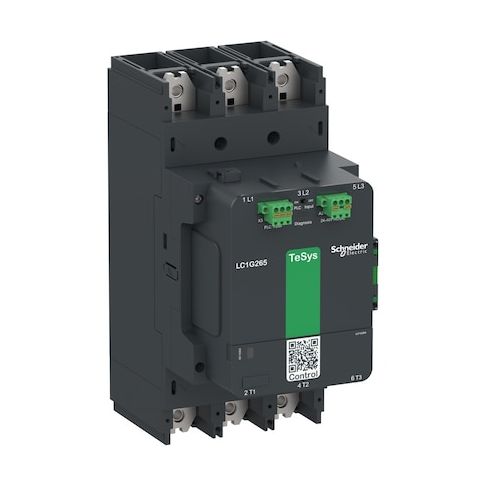

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G265EHEA

• The IEC Magnetic Contactor is a 3-pole, spring-type electrical switch rated for use within the specified standards. It uses a 48V-130V AC/DC coil

• auxiliary contacts are configured as 1NC/1NO (2 auxiliary contacts total). The device is rated for single-phase applications, has an IP20 rating, and is compatible with plate mounting configurations. It has a maximum voltage rating of up to 1000V AC and operates at frequencies of 50/60 Hz.

  - Item: IEC Magnetic Contactor

• - Series: TeSys Giga
• - Contactor Style: IEC
• - Coil Voltage: 48V-130V AC/DC
• - Phase: Single
• - Number of Poles: 3
• - Number of Auxiliary Contacts: 2
• - Auxiliary Contact Form: 1NC/1NO
• - Includes Auxiliary Contacts: Yes
• - Terminal Connection Type: Spring Type
• - Mounting Style: Plate
• - IP Rating: IP20
• - Maximum Voltage Rating: 1000V AC
• - Frequency: 50/60 Hz
• - Rated for operation within the specified temperature ranges (see specifications). // replaces Maximum Operating Temperature: 140 Degrees F
• - Rated for operation within the specified temperature ranges (see specifications). // replaces Minimum Operating Temperature: -13 Degrees F
• - Mechanical Operating Durability: 8000000
• - Overall Depth: 4.8 in
• - Overall Height: 11.42 in
• - Overall Width: 5.51 in
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Embedded Surge Suppressor: No
• - Full Load Current (Inductive): 340 A
• - Full Load Current (Resistive): 385 A
• - Full Load Amps (Inductive): 340 A
• - Full Load Amps (Resistive): 385 A
• - Rated for operation within the specified temperature ranges (see specifications). // replaces Maximum Operating Temperature: 140 Degrees F
• - Rated for operation within the specified temperature ranges (see specifications). // replaces Minimum Operating Temperature: -13 Degrees F
• - Item: IEC Magnetic Contactor
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Includes Auxiliary Contacts: Yes
• - Embedded Surge Suppressor: No
