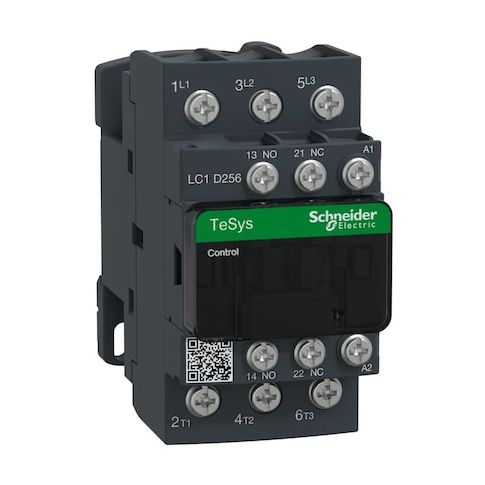

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:LC1D256G7

• The item is an IEC Magnetic Contactor from Schneider Electric. It is a three-pole, non-reversing, electrically operated switch with a 120V AC coil and auxiliary contacts configured as 1NC/1NO. The device employs an electromagnetic coil rated for operation within specified voltage ranges and is part of the TeSys Deca family, with screw-terminal mounting.

  - Type: IEC Magnetic Contactor

• Item: IEC Magnetic Contactor
• - Poles/Phase: 3 poles
• Phase: Three
• - Coil Voltage: 120V AC
• - Reversing: Non-Reversing
• - Auxiliary Contacts: 2 total
• Form: 1NC/1NO
• - Terminal Connection Type: Screw
• - Maximum Voltage Rating: 690V AC
• - IP Rating: IP20
• - Mechanical Durability: Mechanical durability is rated based on standard testing procedures
• - Electrical Operating Durability: Electrical operating durability ratings are provided according to applicable standards and testing conditions
• - Full Load Amps/Current: Rated current values are provided based on standardized testing conditions and should be used within specified parameters
• - HP Ratings (by voltage/phases): 120V 2 hp (single phase)
• 240V 3 hp (single phase)
• 208V 7 1/2 hp
• 240V 7 1/2 hp
• 480V 15 hp
• 600V 20 hp
• - Frequency: 50/60 Hz
• - Mounting Style: DIN Rail, Plate
• - Dimensions (W x H x D): 1.77 in x 3.35 in x 3.62 in
• - Series: TeSys Deca
• - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
• - Resistance Properties: Resistance properties indicate compliance with relevant standards but do not guarantee fire safety or insulation integrity in all circumstances
• - Includes Auxiliary Contacts: Yes
