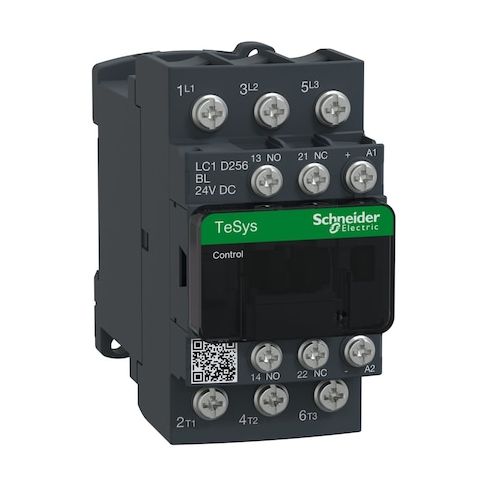

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D256BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, machinery, and equipment. Its 3-pole, non-reversing design ensures safe and precise control, while the 24V DC coil and screw-terminal connections provide easy installation and maintenance. With a maximum voltage rating of 690V AC and a frequency of 50 Hz, this contactor is suitable for use in various industries, including manufacturing, oil and gas, and renewable energy. Its robust design and high-quality materials ensure a long lifespan, making it an ideal choice for applications where reliability is critical.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a non-reversing device.
- It operates from a 24V DC coil.
- It includes auxiliary contacts configured as 1NC/1NO.
Top product applications:
- Motor Control
- Motor Start/Stop
- Power Distribution
The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole, non-reversing magnetic switch rated for operation within the specified electrical parameters. It operates from a 24V DC coil and includes auxiliary contacts configured as 1NC/1NO (2 total). The device uses screw-terminals and can be mounted on DIN Rail or Plate, with IEC-standard design and is rated for use up to 690V AC at 50 Hz in accordance with applicable standards.
Key features
- - Coil voltage: 24V DC
- - Poles: 3
- - Auxiliary contacts: 2 total (1NC/1NO)
- - Reversing capability: Non-Reversing
- - Mounting style: DIN Rail, Plate
- - Terminal connection type: Screw
- - Maximum voltage rating: 690V AC
- - Frequency: 50 Hz
- - IP Rating: IP20
- - Embedded surge suppressor: No
- - Series: TeSys Deca
- - Phase: Three
- - Full Load Amps (Inductive/Resistive): 150 A / 200 A
- - Full Load Current (Inductive/Resistive): 150 A / 200 A
- - Horsepower (various voltages): 120V AC 2 hp
- 240V AC 3 hp
- 208V AC 7 1/2 hp
- 240V AC 7 1/2 hp
- 480V AC 15 hp
- 600V AC 20 hp
- - Mechanical operating durability: 30,000,000 cycles
- - Electrical operating durability: 1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Auxiliary contacts included: Yes
- - Resistance properties: Fire Resistant, Insulation Resistant
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 16
- Unit of Measure: EA
- Package Length: 4.72
- Package Width: 3.74
- Package Height: 2.17
- Package Weight: 1.33
