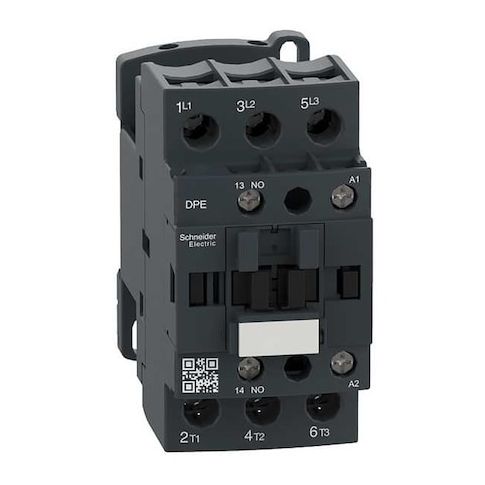

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE38B7
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for motor control and resistive loads. Its 3-pole, non-reversing design ensures safe and controlled operation, while its 24V AC coil and screw clamp terminals provide easy installation and maintenance. Rated for up to 690V AC at 50/60Hz, this contactor is ideal for use in various applications, including industrial automation, HVAC systems, and power distribution. Its compact design and DIN rail mounting make it perfect for space-constrained environments, offering a reliable and cost-effective solution for controlling and protecting electrical circuits.
Top product features:
- It features a 24 V AC coil.
- It includes three normally open main contacts and a normally open auxiliary contact.
- It carries IP20 protection.
Top product applications:
- Motor Control
- Resistive Load
- DIN Rail, Plate Mounting
Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for use within IEC standards. It features a 24 V AC coil and screw clamp terminals, and is intended for use with motor control and resistive loads. The unit includes three normally open main contacts and a normally open auxiliary contact, and it is rated for up to 690 V AC at 50/60 Hz. It carries IP20 protection and no enclosure, and can be mounted on a DIN rail or plate.
Key features:
- - Coil Voltage: 24 V AC
- - Poles: 3
- - Main Contacts: 3 NO
- - Auxiliary Contacts: 1 NO
- - Reversing: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Series: TeSys Easy
- - Max Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Application: Motor Control, Resistive Load
- - Mounting Style: DIN Rail, Plate
- - Dimensions: Width 1.77 in, Depth 3.62 in, Height 3.35 in
- - Net Weight: 0.375 kg
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.80
- Package Height: 2.10
- Package Weight: 0.09
