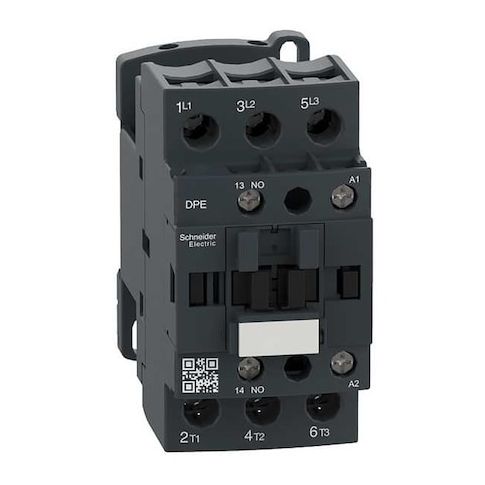

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE38G7

• The Schneider Electric IEC Magnetic Contactor is a TeSys Easy, non-reversing, 3-pole magnetic switch rated for use in electrical control systems within specified parameters. It operates with a 120 V AC coil

• includes 3 main contacts and 1 auxiliary contact as specified. The device is suitable for use with motor loads and resistive loads within specified ratings and manufactured in accordance with applicable IEC standards.

  - Coil Voltage: 120 V AC

• - Auxiliary Contacts: 1 NO
• - Auxiliary Contact Form: 1 NO
• - Contactor Style: IEC
• - Reversing: No
• - Reversing Capability: Non-Reversing
• - Poles: 3
• - Main Contacts (Normally Open): 3
• - Includes Auxiliary Contacts: Yes
• - Frame / Series: TeSys Easy
• - Frequency: 50/60 Hz
• - Max. Voltage Rating: 690 V AC
• - Rated Voltage: 690 V AC, 300 V DC
• - Rated Insulation Volts: 600/690 V
• - IP Rating: IP20
• - Enclosure: No Enclosure
• - Enclosure Rating: 3R
• 4
• - Net Weight: 0.375 kg
• - Depth: 3.62 in
• - Height: 3.35 in
• - Width: 1.77 in
• - Electrical Connection: Screw Clamp
• - Electrical Operating Durability: 1,000,000
• 600,000
• - Mechanical Durability: 10 Mcycles
• - Operating Time (Closing/Opening): 12-22 ms / 4-19 ms
• - Holding VA: 7.5 VA (60 Hz, 20°C)
• 7 VA (50 Hz, 20°C)
• - Inrush VA: 70 VA
• - Rated Making Capacity: 140 A (AC Signalling)
• 250 A (DC Signalling)
• 550 A @ 440 V (Power)
• - Maximum Operating Temperature: 140°F
• - Max. Temperature: 850°C
• - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
• - Shock Resistance: 15 G (Closed)
• 10 G (Open)
• - Vibration Resistance: 4 G (Closed)
• 2 G (Open)
• - Signalling Circuit Frequency: 25 to 400 Hz
• - Impulse Withstand Voltage: 6 kV
• - Signalling Circuit: 5 mA switching current
• 17 V switching voltage
• - Terminal Connection Type: Screw Clamp
• - Tightening Torque: 1.7 Nm (Control)
• 2.5 Nm (Power)
• - Standards/Series Mention: TeSys Easy
• TeSys
• - Environmental Attributes: Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3
