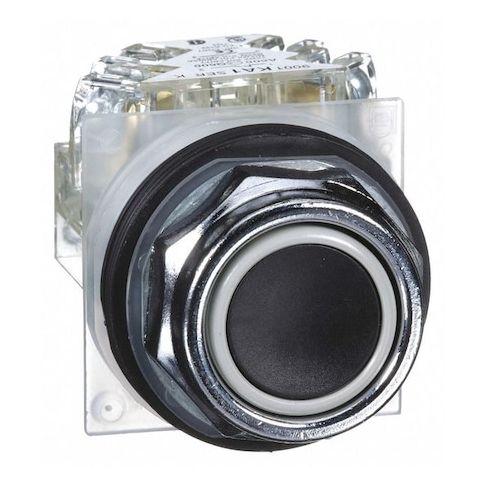

Push Button Operator, 30 mm, SPDT, Black MPN:9001KR1BH13
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8493633
Push Button Operator, 30 mm, SPDT, Black
The Schneider 30 mm Push Button Operator is a reliable and durable solution for a variety of applications, including industrial control panels, machine automation, and building management systems. Its momentary action and flush button design provide a clean and unobtrusive interface for operators, while its metal construction and chrome-plated bezel ensure a long-lasting and corrosion-resistant finish. With a 10A @ 600V AC rating and IP66 protection, this operator can withstand harsh environments and heavy use. Suitable for use in NEMA-rated enclosures, it's an ideal choice for a range of industries, including manufacturing, healthcare, and transportation.
Top product features:
- Flush button type operator provides a flush design to minimize space requirements.
- Momentary action allows for one-touch operation with automatic return to the original state.
- SPDT contact form enables switching between two circuits with a single button press.
Top product applications:
- Control Panels
- Industrial Automation Systems
- Machine Guarding
Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Die Cast Aluminum, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE, Terminal Connection Screw Clamp, Material Metal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.30
- Package Height: 1.90
- Package Weight: 0.10
Product info last updated on February 7, 2026 10:13am UTC
Category: Industrial Electrical Controls and Automation
