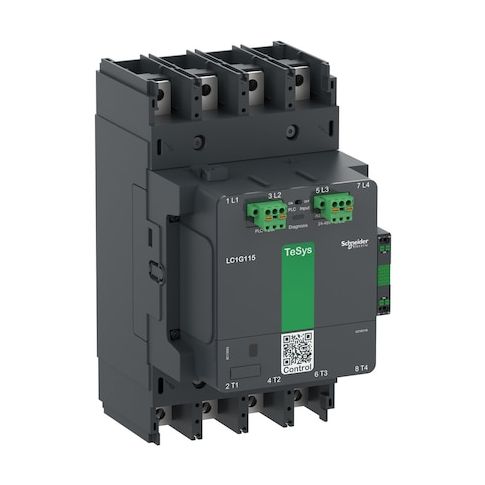

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G1504EHEA
Free Shipping
In Stock
The TeSys Giga IEC Magnetic Contactor is a reliable and efficient electrical control device designed for a wide range of applications. Suitable for use in industrial settings, it offers a high level of switching performance and can operate within a variety of voltage and current ranges. With its spring-type terminals and 4-pole configuration, it provides a secure and stable connection. Ideal for use in control systems, the TeSys Giga IEC Magnetic Contactor is also suitable for applications in HVAC, manufacturing, and other industries where precise control is essential. Its durability and reliability make it a valuable addition to any electrical system.
Top product features:
- Switches within the specified voltage and current ranges according to IEC standards.
- Features spring-type terminals for secure connections.
- Has two auxiliary contacts configured as 1NC/1NO for added functionality.
Top product applications:
- Automotive Electrical Systems
- Industrial Automation and Control Systems
- HVAC and Refrigeration Systems
The IEC Magnetic Contactor is a 4-pole, single-phase electrical control device rated for switching within the specified voltage and current ranges according to IEC standards. It is rated for operation within the specified coil voltage range of 48–130 V AC/DC and includes two auxiliary contacts configured as 1NC/1NO. The unit features spring-type terminals, is part of the TeSys Giga series, and is rated for use at voltages up to 1000 V AC as per specifications.
Key features
- - Item: IEC Magnetic Contactor
- - Series: TeSys Giga
- - Contactor Style: IEC
- - Poles: 4
- - Phase: Single
- - Coil Voltage: 48–130 V AC/DC
- - Auxiliary Contacts: 2 total (1NC/1NO)
- - Embedded Surge Suppressor: No
- - Terminal Connection Type: Spring Type
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Maximum Voltage Rating: Rated for use at voltages up to 1000 V AC as per specifications
- - Maximum Operating Temperature: Specified to operate within the temperature range provided (e.g., -13 °F to 140 °F)
- - Minimum Operating Temperature: Specified to operate within the temperature range provided (e.g., -13 °F to 140 °F)
- - Mechanical Operating Durability: 8,000,000 cycles
- - Mounting Style: Plate
- - Overall Dimensions: Depth 7.6 in, Height 10.04 in, Width 5.63 in
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Full Load Amps (Inductive): 230 A
- Full Load Amps (Resistive): 275 A
- - Full Load Current (Inductive): 150 A
- Full Load Current (Resistive): 275 A
- - Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 10.24
- Package Height: 9.84
- Package Weight: 14.02
