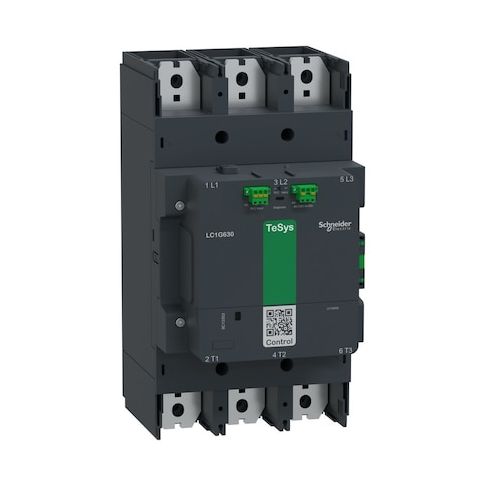

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G630EHEA
Free Shipping
In Stock
The TeSys Giga IEC Magnetic Contactor is a reliable and efficient switching device designed for industrial applications. Compatible with AC/DC power sources between 48V-130V, this 3-pole contactor features spring-type terminals for easy connections and includes 2 auxiliary contacts for added functionality. Suitable for use in a variety of settings, including manufacturing, automation, and control systems, this contactor offers high current ratings and a durable design. With a mechanical operating durability rating and certifications to international standards, the TeSys Giga IEC Magnetic Contactor provides a trustworthy solution for demanding industrial environments.
Top product features:
- The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards.
- It utilizes an electromagnetic coil compatible with typical industrial applications.
- It features spring-type terminals suitable for standard connections.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Power Distribution Systems
The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It utilizes an electromagnetic coil compatible with typical industrial applications. This 3-pole device includes auxiliary contacts as specified
- features spring-type terminals suitable for standard connections.
- Item: IEC Magnetic Contactor
- - Series: TeSys Giga
- - Poles: 3
- - Phase: Single
- - Coil Voltage: 48V-130V AC/DC
- - Auxiliary Contacts: 2 (1NC/1NO)
- - Includes Auxiliary Contacts: Yes
- - Auxiliary Contact Form: 1NC/1NO
- - Contactor Style: IEC
- - Mounting Style: Plate
- - Terminal Connection Type: Spring Type
- - Rated for operation up to 1000V AC within specified conditions
- - Frequency: 50/60 Hz
- - Full Load Current - Inductive: 630 A
- - Full Load Current - Resistive: 1,050 A
- - IP Rating: IP20
- - Embedded Surge Suppressor: No
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Mechanical Operating Durability: has a mechanical durability rating based on standardized testing procedures
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Overall Depth: 10.47 in
- - Overall Height: 15.3 in
- - Overall Width: 8.31 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 83 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.08
- Package Width: 12.20
- Package Height: 13.39
- Package Weight: 42.92
