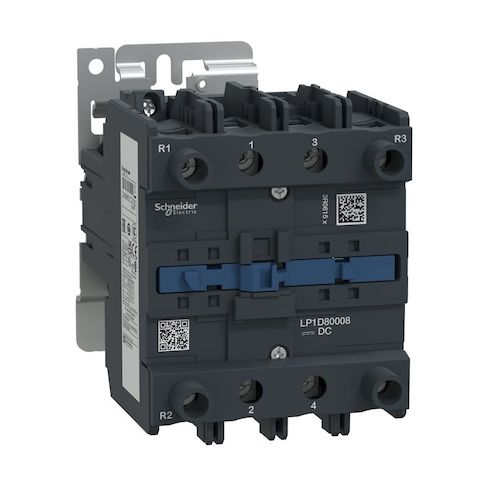

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LP1D80008BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and switching electrical circuits. Designed for use in a variety of applications, including industrial automation, commercial facilities, and residential settings, this non-reversing contactor provides precise control and protection for motors and other electrical loads. With its compact design and easy mounting options, it's perfect for DIN Rail or Plate mounting. The contactor's 2NC/2NO auxiliary contacts and 4-pole configuration make it ideal for a range of applications, including HVAC, lighting, and power distribution systems.
Top product features:
- Operates on a coil voltage of 24V DC.
- Features a configuration of two normally closed (2NC) and two normally open (2NO) auxiliary contacts.
- Can handle full load currents up to 150 A inductive and 200 A resistive.
Top product applications:
- Industrial Automation Systems
- Control Panel Manufacturing
- High-Current Motor Control Circuits
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 4-pole device designed for DIN Rail or Plate mounting. It operates with a coil voltage of 24V DC and has an IP rating of IP20. The contactor features an auxiliary contact form of 2NC/2NO and includes four auxiliary contacts. With a maximum voltage rating of 690V AC, it can handle full load currents up to 150 A inductive and 200 A resistive. This product does not include an embedded surge suppressor.
Key Features:
- - Auxiliary Contact Form: The device comes with a configuration of two normally closed (2NC) and two normally open (2NO) auxiliary contacts.
- - Coil Voltage: Operates on a coil voltage of 24V DC.
- - Full Load Amps: Rated for operation with inductive loads up to 150A and resistive loads up to 200A.
- - Mounting Style: Can be mounted using either the DIN Rail or Plate method.
- - Number of Poles: Comes with four poles which determine the number of circuits that can be switched simultaneously.
- - Maximum Voltage Rating: Rated for operation within voltage ranges not exceeding 690V AC.
- - Standards Compliance: Complies with CSA C22.2 No14, EN60947-4-1, EN60947-5-1, IEC60947–5–1, UL508 standards
- please verify compatibility with your specific application.
- -Terminal Connection Type: Features screw clamp terminals
- proper installation required for effective use.
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 52 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.09
- Package Width: 5.83
- Package Height: 8.86
- Package Weight: 6.53
