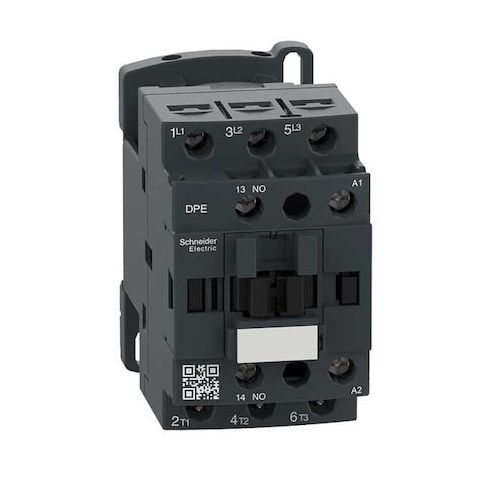

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control and resistive load device designed for industrial applications. This non-reversing contactor operates with a coil voltage of 24V AC, making it suitable for various electrical systems. It features screw clamp terminals for secure electrical connections and has an operational frequency of 50/60 Hz. The contactor has an electrical operating lifespan rated for up to 1 million cycles under specified conditions. With its compact dimensions (3.39 in depth, 3.03 in height, and 1.77 in width), this unit can be conveniently mounted on DIN rails or plates.
Key Features:
- Auxiliary Contact Configuration: Comes with one normally open (1NO) auxiliary contact.
- Control Circuit Voltage Limits: Operates within specific drop-out and operational ranges to ensure reliable performance.
- Electrical Durability: Rated for operation with up to 0.6 Mcycles at less than 440 V (25 A, AC-1) and up to 1 Mcycles at less than 440 V (12 A, AC-3).
- Horsepower Compatibility: Compatible with motors ranging from a third horsepower (@ Single Phase -120V AC) to seven-and-a-half horsepower (@ Three Phase -600V AC), within the specified ranges.
- Maximum Operating Watts: Rated for operation within power loads between three kilowatts (@220 to @230VAC) and seven-and-a-half kilowatts (@660to @690VAC).
-Mechanical Durability: Mechanical operating durability is rated for ten million cycles.
-Rated Breaking Capacity & Making Capacity: Rated breaking capacity and making capacity are both listed at two hundred fifty amperes @440 volts.
-Standards Compliance: Meets international standards including CSA C22.2 No14, EN60947-4-1, EN60947-5-1, IEC 60947-4-1, and IEC 60947-5.
