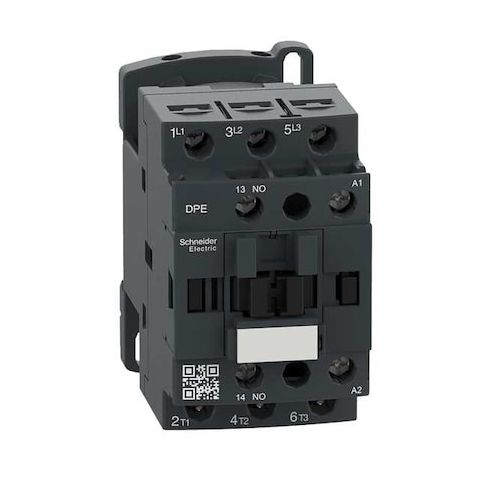

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE25U7
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load circuits. This 3-pole, non-reversing device features a 240V AC coil and 3 normally open main contacts, making it ideal for use in IEC-style control panels. With a maximum continuous current of 25A and a breaking current of up to 300A, it can handle demanding applications. The contactor's compact design and screw clamp terminals make it easy to install and maintain. Suitable for use in various industries, including manufacturing, oil and gas, and water treatment, this contactor provides reliable and efficient control.
Top product features:
- The SCHNEIDER ELECTRIC IEC Magnetic Contactor has 3 normally open main contacts and 1 normally open auxiliary contact.
- It is designed to switch motor control and resistive load circuits using screw clamp terminals on DIN rail or plate.
- It is rated to withstand breaking currents up to 300 A at 440 V.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Resistive Load Circuits
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing device with a 240 V AC coil (TeSys Easy series). It is designed to switch motor control and resistive load circuits using 3 normally open main contacts and 1 normally open auxiliary contact, mounted via screw clamp terminals on DIN rail or plate. Rated for operation within the specified voltage ranges
- does not include an embedded surge suppressor. It is intended for use in IEC-style control panels.
- Coil Voltage: 240 V AC
- - Poles/Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 1 NO
- - Reversing: Non-Reversing
- - Series/Frame: TeSys Easy
- - Mounting: DIN Rail, Plate
- - Mounting Surfaces: Plate, Rail
- - Electrical Connection: Screw Clamp Terminals
- - Rated Voltage: 690 V AC, 300 V DC
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Enclosure Rating: 3R
- 4
- - Rated for a maximum continuous current of 25 A under specified conditions.
- - Rated to withstand breaking currents up to 300 A at 440 V, according to specifications.
- - Net Weight: 0.33 kg
- - Dimensions (H x W x D): 3.03 in x 1.77 in x 3.39 in
- - Embedded Surge Suppressor: No
- - Non-Overlap Time: 1.5 ms
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.80
