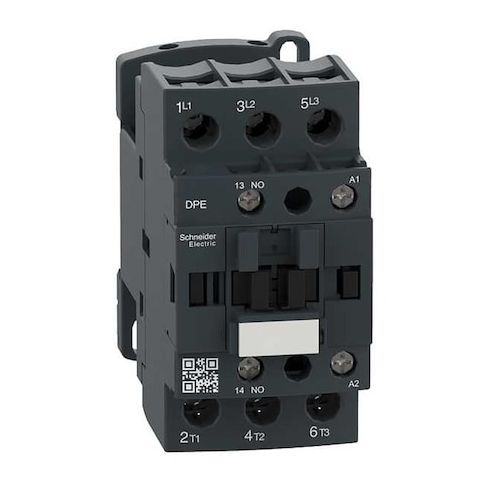

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE32G7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control and resistive load device, designed for use in industrial settings. This product is designed for operation at a coil voltage of 120V AC and features an auxiliary contact form of 1NO. The contactor style follows the International Electrotechnical Commission (IEC) standards, ensuring global compatibility. It has screw clamp terminals for electrical connection and offers a depth of 3.62 inches. Its operational durability ranges from 0.8 to 1.1 Uc at different temperatures and frequencies.

  Key Features:

• - Motor Control: Rated for handling inductive and resistive loads up to 32 A.
• - Auxiliary Contact Configuration: Comes with one normally open (1NO) auxiliary contact.
• - Coil Voltage: Designed for operation at a coil voltage of 120V AC.
• - Electrical Connection: Uses screw clamp terminals for secure electrical connections.
• - Durability: Electrical operating durability tested up to one million cycles under specified conditions.
• - Enclosure NEMA Rating: Rated as NEMA enclosure type "3R
• 4", providing protection against various environmental factors.
• - Frame/Series/Class/Code: Part of the TeSys series by Schneider Electric, known for its reliable performance in industrial applications.
• - Frequency Compatibility: Compatible with operation at frequencies between 50/60 Hz
• -Horsepower Ratings : Suitable for use with motors ranging from single phase -120V AC (2hp), three phase -240V AC(7½ hp), three phase -480V AC(15hp) upto three phase -600vAC(20hp).
• -Mounting Style : Versatile mounting options available including DIN Rail or Plate mounting styles
• -Temperature Tolerance : Tested within the temperature range from minimum operating temperature (-40 Degrees F )to maximum operating temperature (140 Degrees F).
