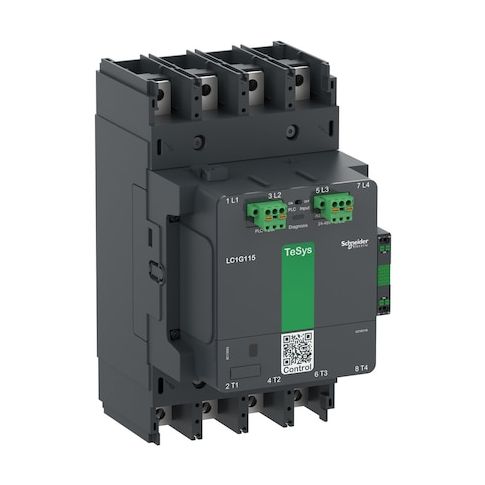

IEC Magnetic Contactor, 1NC/1NO, 24V-48V AC/DC, 4 P, Spring Type MPN:LC1G1154BEEA
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Rated for operation within the 24-48V AC/DC voltage range, this four-pole contactor features spring-type terminals for easy wiring and is part of the TeSys Giga series. With a high mechanical durability of 8,000,000 cycles and a temperature range of -13°F to 140°F, this contactor is designed to withstand harsh environments and provide consistent performance. Ideal for use in industries such as manufacturing, HVAC, and oil and gas, it offers a reliable and efficient solution for controlling electrical circuits.
Top product features:
- The IEC Magnetic Contactor is a four-pole device rated for operation within a specified voltage range (24–48 V AC/DC).
- The unit contains auxiliary contacts configured as 1NC/1NO.
- The device is designed to operate within a temperature range of -13°F to 140°F.
Top product applications:
- Motor Control Circuits
- Control Panels
- Industrial Automation Systems
The IEC Magnetic Contactor is a four-pole, plate-mount device rated for operation within the specified IEC standards. It is rated for operation within the specified voltage range (24–48 V AC/DC). The unit contains auxiliary contacts configured as 1NC/1NO and is part of the TeSys Giga series, with spring-type terminals for wiring.
Key features
- - Auxiliary contacts: Contains auxiliary contacts configured as 1NC/1NO
- - Coil voltage: Rated for operation within the specified voltage range (24–48 V AC/DC)
- - Contactor style: IEC
- - Integrated surge suppressor: Does not include an integrated surge suppressor
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Maximum voltage rating: Rated for use up to 1000V AC under specified conditions
- - Full load amps (inductive): Rated for continuous operation at these current levels under specified conditions
- (resistive): Rated for continuous operation at these current levels under specified conditions
- - Full load current (inductive): Rated for continuous operation at these current levels under specified conditions
- (resistive): Rated for continuous operation at these current levels under specified conditions
- - Temperature range: Designed to operate within the specified temperature ranges (-13°F to 140°F)
- - Mechanical durability: 8,000,000 cycles
- - Mounting style: Plate
- - Number of auxiliaries: 2
- - Number of poles: 4
- - Dimensions: Depth 7.6 in
- Height 10.04 in
- Width 5.63 in
- - Phase: Single
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Terminal connection type: Spring Type
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 14.96
- Package Width: 10.24
- Package Height: 9.84
- Package Weight: 14.07
