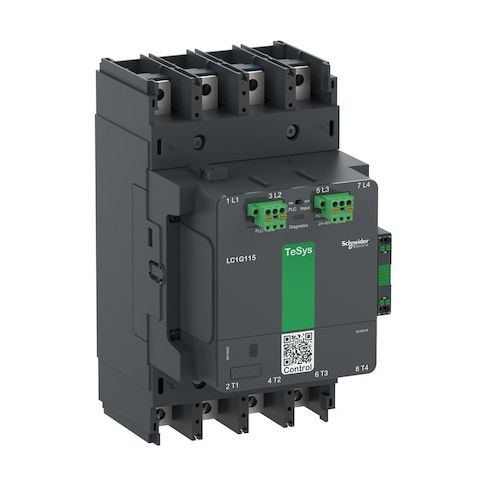

IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 4 P, Spring Type MPN:LC1G1154LSEA

• The IEC Magnetic Contactor is a 4-pole, plate-mounted switching device (TeSys Giga series) that uses an electromagnetic coil to open or close power circuits. It includes two auxiliary contacts configured as 1NC/1NO and accepts a coil voltage range of 200–500 V AC/DC. Complies with IEC standards, it is rated for operation up to 1000 V AC within specified conditions and features an IP20 enclosure. The contactor operates within the specified frequency ranges (50/60 Hz), single-phase systems, and has a mechanical durability of approximately 8,000,000 cycles under specified testing conditions. It uses Spring Type terminals and is mounted on a plate, intended for use in controlling motors, lighting, and similar loads as per specifications.

  - Item: IEC Magnetic Contactor (TeSys Giga), 4-pole, plate mounting

• - Auxiliary contacts: 2 total (1NC/1NO)
• - Coil voltage: 200–500 V AC/DC
• - Maximum voltage rating: 1000 V AC
• - Frequency: 50/60 Hz
• - IP rating: IP20
• - Phase: Single
• - Series: TeSys Giga
• - Mounting: Plate
• Terminal connection: Spring Type
• - Mechanical durability: Has a mechanical durability of approximately 8,000,000 cycles under specified testing conditions
• - Operating temperature: -13°F to 140°F
• - Full load amps (Inductive/Resistive): 210 A / 250 A
• - Full load current (Inductive/Resistive): 115 A / 250 A
• - Dimensions: Depth 7.6 in
• Height 10.04 in
• Width 5.63 in
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
