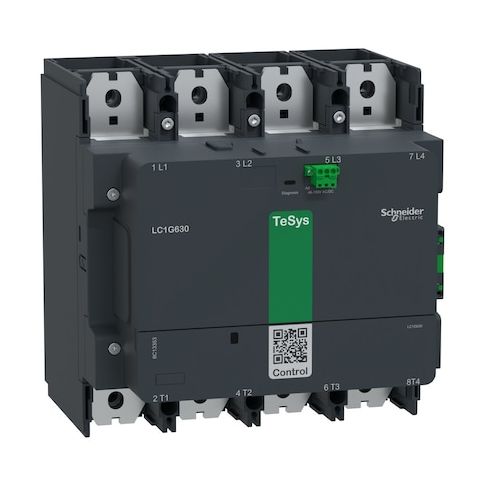

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G6304EHEN

• The IEC Magnetic Contactor is a four-pole, IEC-style electromagnetic switching device rated for controlling power circuits within specified parameters. It is rated for operation within the specified coil voltage range of 48V-130V AC/DC and includes auxiliary contacts configured as 1NC/1NO

• terminal type: spring-type.

  - Item: IEC Magnetic Contactor

• - Contactor Style: IEC
• - Series: TeSys Giga
• - Coil Voltage: 48V-130V AC/DC
• - Auxiliary Contacts: 2 (1NC/1NO)
• Terminal type: spring-type
• - Number of Poles: 4
• - Terminal Connection Type: Spring Type
• - Mounting Style: Plate
• - Frequency: 50/60 Hz
• - Voltage rating: rated for use at voltages up to 1000V AC within applicable standards and conditions
• - IP Rating: IP20
• - Phase: Single
• - Mechanical Operating Durability: has a mechanical durability rating of approximately 5,000,000 cycles under standard testing conditions
• - Maximum Operating Temperature: 140 Degrees F
• - Minimum Operating Temperature: -13 Degrees F
• - Full Load Current - Inductive: rated for full load current up to approximately 630 A (inductive load) under specified test conditions
• - Full Load Current - Resistive: rated for full load current up to approximately 1050 A (resistive load) under specified test conditions
• - Overall Depth: 10.47 in
• - Overall Height: 11.18 in
• - Overall Width: 11.06 in
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Embedded Surge Suppressor: No
