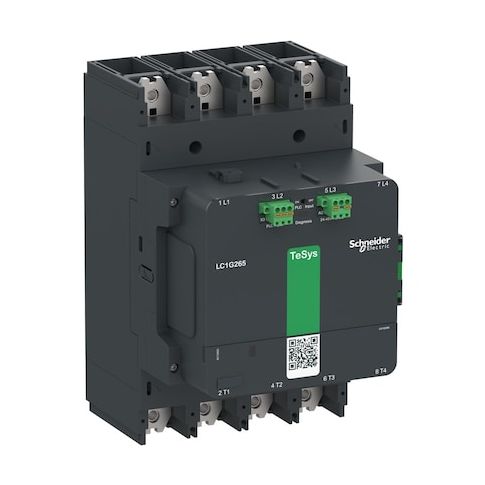

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G2654EHEA
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and versatile electrical switching device designed for a wide range of control applications. With a 4-pole configuration and 1NC/1NO auxiliary contacts, it provides precise control and isolation in power circuits. Suitable for use in 48-130V AC/DC environments, this contactor features spring-type terminals and a durable design with a mechanical durability rating of 8,000,000 cycles. Ideal for industrial automation, HVAC systems, and other control applications, the TeSys Giga series IEC Magnetic Contactor offers reliable performance, ease of installation, and long-term durability in harsh environments.
Top product features:
- Operates on a coil voltage range of 48–130 V AC/DC
- Switches power circuits in control applications
- Has a mechanical durability rating of 8,000,000 cycles
Top product applications:
- Power circuits in control applications
- Industrial automation systems
- High-voltage electrical distribution systems
Schneider Electric IEC Magnetic Contactor is a 4-pole electrical switching device with 2 auxiliary contacts configured as 1NC/1NO. It operates on a coil voltage range of 48–130 V AC/DC and uses spring-type terminals. The unit is part of the TeSys Giga series and is rated for operation within the specified parameters for switching power circuits in control applications.
- Auxiliary contacts: 2 total (1NC/1NO). Includes auxiliary contacts: Yes
- - Coil voltage: 48–130 V AC/DC
- - Contactor style: IEC
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 1000 V AC
- - IP rating: IP20
- - Phase: Single
- - Number of Poles: 4
- - Mounting style: Plate
- - Terminal connection type: Spring Type
- - Maximum operating temperature: 140 Degrees F
- - Minimum operating temperature: -13 Degrees F
- - Mechanical durability rating of 8,000,000 cycles (note: does not guarantee performance over this number of cycles)
- - Dimensions: Overall Depth 4.8 in
- Overall Height 11.42 in
- Overall Width 7.28 in
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Item: IEC Magnetic Contactor
- - Includes Auxiliary Contacts: Yes
- - Maximum Voltage Rating: 1000V AC
- - Coil: 48–130 V AC/DC
- - Frequency: 50/60 Hz
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 4
- Unit of Measure: EA
- Package Length: 14.57
- Package Width: 10.04
- Package Height: 11.93
- Package Weight: 22.05
