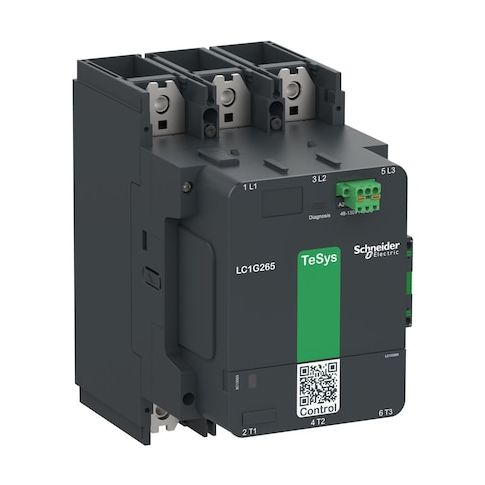

IEC Magnetic Contactor, 1NO/1NC, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G265EHEN
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of industrial applications. Suitable for switching motors, lighting, and other loads, this 3-pole contactor operates within the specified IEC standards and is compatible with standard control panel configurations. With a spring-type terminal connection and auxiliary contacts included, it provides a convenient and safe solution for controlling electrical systems. Its robust construction and high operating durability make it an ideal choice for demanding industrial environments, including manufacturing, processing, and heavy-duty operations.
Top product features:
- The IEC Magnetic Contactor is a 3-pole, electrically operated switching device.
- It operates with a coil voltage of 48V-130V AC/DC.
- It has spring-type terminal connection.
Top product applications:
- Switching motors in industrial settings
- Switching lighting in industrial settings
- Switching other industrial loads within its electrical ratings
The IEC Magnetic Contactor is a 3-pole, electrically operated switching device rated for operation within the specified IEC standards. It operates with a coil voltage of 48V-130V AC/DC as specified
- suitable for switching motors, lighting, and other industrial loads within its electrical ratings. Spring-type terminal connection
- compatible with standard control panel configurations according to applicable industry practices. Auxiliary contacts are included
- configuration is as specified.
- Item: IEC Magnetic Contactor
- Contactor Style: IEC
- Poles: 3
- Phase: Single
- - Coil Voltage: 48V-130V AC/DC
- Frequency: 50/60 Hz
- - Auxiliary Contacts: 2 total (1NO/1NC)
- Includes Auxiliary Contacts: Yes -> Auxiliary contacts are included
- configuration is as specified
- - Embedded Surge Suppressor: No -> Embedded Surge Suppressor: Does not include an integrated surge suppressor
- - Terminal Connection Type: Spring Type
- Mounting Style: Plate
- - Maximum Voltage Rating: 1000V AC
- IP Rating: IP20 -> Voltage rating: up to 1000V AC
- Ingress protection: IP20
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1 -> Standards: Complies with listed standards
- certification indicates conformity but does not imply guarantee of performance under all conditions
- - Maximum Operating Temperature: 140 Degrees F
- Minimum Operating Temperature: -13 Degrees F -> Temperature: rated for operation within the specified temperature ranges
- - Mechanical Operating Durability: 8000000 cycles
- - Overall Dimensions: Depth 4.8 in
- Height 8.86 in
- Width 5.51 in
- - Series: TeSys Giga
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 8.86
- Package Height: 12.20
- Package Weight: 16.49
