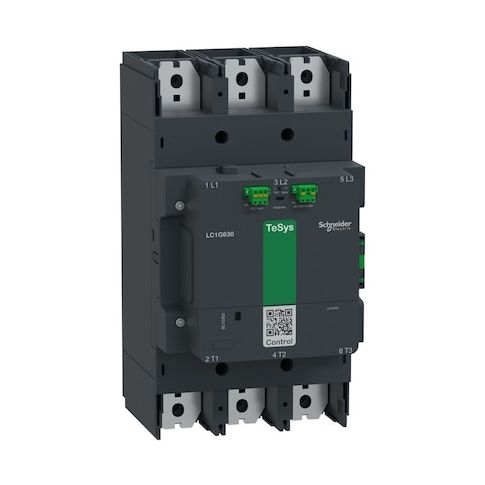

The IEC Magnetic Contactor from Schneider Electric is an electrically operated switching device that opens or closes power circuits in accordance with IEC standards. It is a 3-pole unit with auxiliary contacts configured as 1NC/1NO (2 total) and is powered by a coil rated for 200–500 V AC/DC. The device uses a plate mounting with spring-type terminals and is part of the TeSys Giga family, rated for operation within the specified control configurations.
- Coil voltage: 200–500 V AC/DC
- Auxiliary contacts: 2 total (1NC/1NO)
- Poles: 3
- Terminal connection type: Spring Type
- Mounting style: Plate
- Phase: Single
- Rated for operation up to 1000 V AC in accordance with applicable standards
- IP rating: IP20
- Embedded surge suppressor: No
- Frequency: 50/60 Hz
- has a mechanical lifespan based on standard testing procedures
- Minimum operating temperature: -13°F
- Maximum operating temperature: 140°F
- Rated for continuous operation at a 900 A inductive full-load current under specified conditions
- Full Load Current - Inductive: 800 A
- Rated for continuous operation at a 1,050 A resistive full-load current under specified conditions
- Full Load Current - Resistive: 1,050 A
- Overall dimensions (W x H x D): 8.31 in x 15.3 in x 10.47 in
- Series: TeSys Giga
- Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
