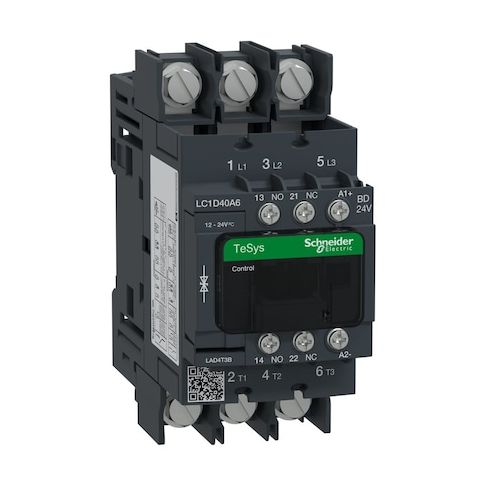

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D40A6BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling three-phase power distribution in various industrial and commercial applications. Suitable for single-phase and three-phase operations, this contactor is ideal for motor control, lighting, and HVAC systems. Its high durability and resistance properties ensure reliable performance in harsh environments, while its fire-resistant design meets international safety standards. With its compact design and screw-type connection, the contactor is easy to mount and integrate into existing systems, making it a versatile and convenient solution for a wide range of applications, from small to large-scale industrial operations.
Top product features:
- Full Load Amps: Inductive at 150 A and Resistive at 200 A.
- Horsepower Compatibility: Suitable for single phase operations at both 120V AC (3 hp) and 240V AC (5 hp), as well as three-phase operations ranging from 208V AC (10 hp) to a maximum of Three Phase -600 V AC(30hp).
- Mechanical Operating Durability rated up to ten million cycles.
Top product applications:
- Three-phase motor control
- Industrial automation systems
- High-power electrical distribution systems
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with an auxiliary contact form of 1NC/1NO. It operates on a coil voltage of 24V DC and has an electrical operating durability of 1,500,000 (AC-3), 1,500,000 (AC-3e), and 700,000 (AC-1). This IEC-style contactor does not include an embedded surge suppressor but does come with auxiliary contacts. The maximum voltage rating for this item is 690V AC.
Key features based on attributes:
- Full Load Amps: Inductive at 150 A and Resistive at 200 A.
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.98
- Package Width: 5.39
- Package Height: 2.44
- Package Weight: 2.00
