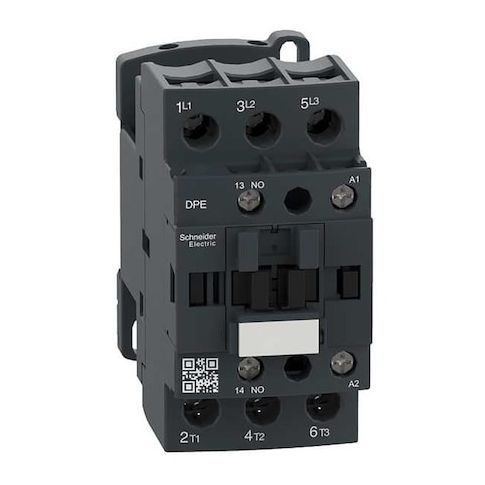

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a motor control and resistive load device, designed for industrial applications. This non-reversing contactor operates with a coil voltage of 240V AC and features screw clamp terminals for secure electrical connection. With its compact dimensions (3.62 in depth, 3.35 in height, and 1.77 in width), it can be conveniently mounted on DIN rails or plates. The product's frame belongs to the TeSys series and it has an IP20 rating, indicating protection against solid objects larger than 12mm but no protection against water.
Key Features:
- Auxiliary Contact Configuration: The contactor comes with one normally open (1NO) auxiliary contact.
- Electrical Durability: The product's electrical operating durability may reach up to 1 million cycles under specified conditions.
- Horsepower Compatibility: It can handle motors ranging from 2 hp at single phase -120V AC to up to 20 hp at three-phase -600V AC.
- Maximum Operating Watts: The maximum operating watts range from 7.5 kW (at 220 to230V AC) up to18.5 kW (at660to690VAC).
- Mechanical Durability: The product's mechanical durability may extend up to 10 million cycles.
- Rated Voltage & Breaking Capacity: The rated voltage stands at690 VACand300 VDCwith a rated breaking capacity of450 A @440 V.
- Standards Compliance: This product complies with multiple international standards including CSA C22.2 No14, EN60947-4-1, EN60947-5-, IEC60947-.
