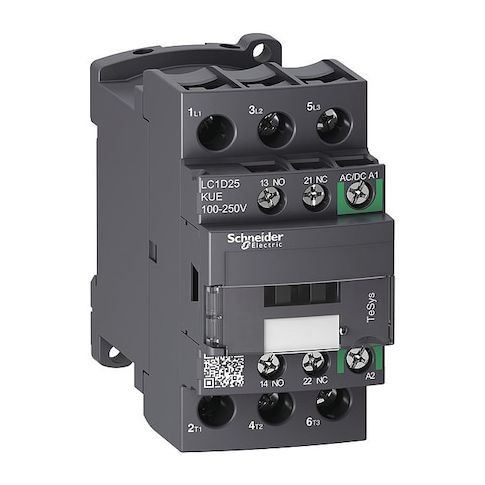

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25KUE

• Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a 3-pole, non-reversing, electrically operated switch rated for use in motor control and resistive-load applications within specified parameters. It features a 100–250 V AC/DC coil, auxiliary contacts configured as 1NO/1NC (2 total), and screw clamp terminals. The unit is compatible with DIN rail or plate mounting according to installation instructions, and it includes a protective cover rated as IP20.

  Key features

• - Poles/contacts: 3 poles
• 3 normally open main contacts
• auxiliary contacts 1NO/1NC (2 total)
• - Coil and switching: Coil voltage 100–250 V AC/DC
• non-reversing
• 50/60 Hz
• - Voltage and making capacity: Voltage and making capacity: rated for operation at voltages up to 690 V AC/DC within specified conditions
• rated making capacity 140 A (AC Signalling) / 250 A (DC Signalling) / 450 A @ 440 V (Power Circuit)
• - Currents and loads: Currents and loads: rated for resistive loads up to 40 A and inductive loads up to 25 A under specified conditions
• - Mechanical/electrical durability: Mechanical/electrical durability: mechanical durability of approximately 15 Mcycles
• electrical durability based on standard testing within specified load ratings
• - Physical and mounting: Depth 3.62 in
• Height 3.35 in
• Width 1.77 in
• Net weight 0.433 kg
• Mounting: DIN Rail, Plate
• Mounts On Plate, Rail
• Electrical connection: Screw Clamp
• - Enclosure and protection: IP20
• Enclosure: Intended for use without an enclosure but includes a protective cover suitable for certain environments
• Embedded surge suppressor: No
• - Standards and safety markings: Standards include UL Listed
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• CSA
• CCC
• - Timing and control: Non-Overlap Time 1.5 ms
• Operating times 45–55 ms (Closing), 20–90 ms (Opening)
