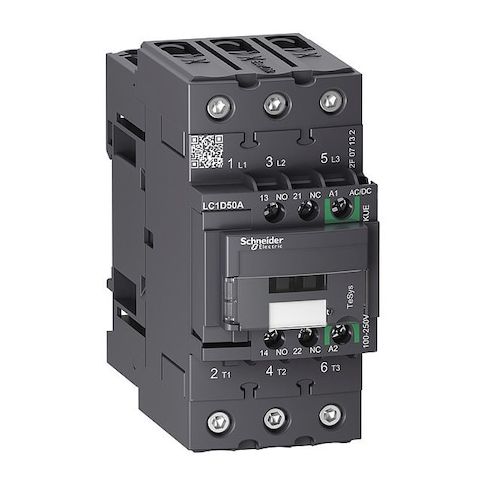

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AKUE
Free Shipping
In Stock
The Schneider Electric TeSys Deca IEC Magnetic Contactor is a reliable and versatile device for controlling electrical circuits. Suitable for a wide range of applications, including industrial automation, HVAC, and lighting control, this 3-pole non-reversing contactor can handle coil voltages between 100-250V AC/DC. With 1 normally open and 1 normally closed auxiliary contact, it provides flexible control and monitoring options. Its compact design and DIN rail or plate mounting options make it easy to integrate into existing systems. With its high-quality construction and robust performance, the TeSys Deca contactor ensures reliable and efficient operation in demanding environments.
Top product features:
- Switches 3-pole, non-reversing electrical circuits with a single coil voltage rating of 100–250 V AC/DC.
- Includes 1 normally open and 1 normally closed auxiliary contact (2 total) for control circuit applications.
- Has a control circuit using screw clamp terminals and a power circuit using EverLink BTR connections for secure and reliable electrical connections.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- HVAC Systems
The item is an IEC Magnetic Contactor (Schneider Electric, TeSys Deca). It is a 3-pole, non-reversing device rated for switching within specified electrical parameters. It is rated for coil voltages between 100–250 V AC/DC and includes 1 normally open and 1 normally closed auxiliary contact (2 total). The control circuit uses screw clamp terminals, while power circuit connections are EverLink BTR. It does not include an enclosure
- suitable for use within appropriate enclosures as per application requirements. It conforms to IP20 ingress protection standards (note: actual performance depends on installation), with mounting options for DIN rail or plate.
Key features
- - Poles: 3
- - Coil Voltage: 100–250 V AC/DC
- - Auxiliary Contacts: 1NO/1NC (2 total)
- - Reversing: Non-Reversing
- - Contactor Style / Series: IEC / TeSys Deca
- - Control Circuit Terminals: Screw Clamp
- Power Circuit: EverLink BTR
- - Max Voltage Rating: 690V AC
- - Full Load Amps: Inductive 50 A
- Resistive 80 A
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Enclosure: Does not include an enclosure
- suitable for use within appropriate enclosures as per application requirements
- - Mounting: DIN Rail, Plate
- - Weight: 0.997 kg
- - Dimensions (L×W×H): Depth 4.72 in
- Width 2.17 in
- Height 4.8 in
- - Operating Times: typical operating times based on standard testing conditions (actual times may vary)
- - Shock/Vibration: 15 G (closed)
- 10 G (open)
- - Environmental: Mercury Free, Pollution Degree 3
- - Inclusions: Everlink Power Connections
- Auxiliary Contacts
- Protective Cover
- - Standards: UL Listed
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- CSA
- CCC
- KC
- UKCA
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.30
- Package Height: 2.40
- Package Weight: 1.15
