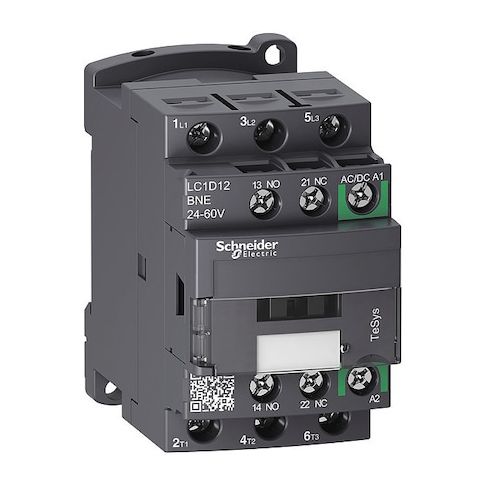

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12BNE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. Its 24-60V AC/DC coil and 3-pole, non-reversing design make it ideal for use in control panels, industrial settings, and commercial facilities. The contactor's screw clamp terminals and compact size also make it easy to integrate into existing systems. With a durable design and high making capacity, this contactor is perfect for applications such as lighting control, HVAC systems, and motor control. Its versatility and reliability make it a valuable addition to any electrical system.
Top product features:
- It controls power circuits in accordance with IEC standards.
- It utilizes a 24–60 V AC/DC coil to operate its main contacts.
- It includes screw clamp terminals for wiring.
Top product applications:
- Industrial Automation
- Power Distribution Systems
- Control Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within specified voltage ranges
- it controls power circuits in accordance with IEC standards. It utilizes a 24–60 V AC/DC coil to operate its main contacts
- auxiliary contacts are available (1NO/1NC). It includes screw clamp terminals for wiring. The unit is part of the TeSys Deca family and is supplied with a protective cover
- it does not include an enclosure. It is intended for mounting in control panels compatible with IEC-standard sizing and interchangeability.
Key features
- - Coil voltage: 24–60 V AC/DC
- - Poles and contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 2 (1NO/1NC)
- available
- - Reversing: Non-Reversing
- - Electrical connection: Screw Clamp Terminals
- - Enclosure/IP: IP20
- No Enclosure
- - Mounting/series: TeSys (Deca)
- Mounting: DIN Rail, Plate
- - Dimensions and weight: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- Net weight 0.373 kg
- - Maximum voltage and frequency: 690 V AC
- 50/60 Hz
- - Rated making capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Durability: Mechanical 15 Mcycles
- Electrical 2.3 Mcycles (11 A AC-3), 0.8 Mcycles (25 A AC-1)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 0.45
