IEC Supplementary Protector, GFP Series, 25 A, 2 Pole, 240V AC, 1.5kA at 240V AC, A Curve MPN:M9R84225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6576339

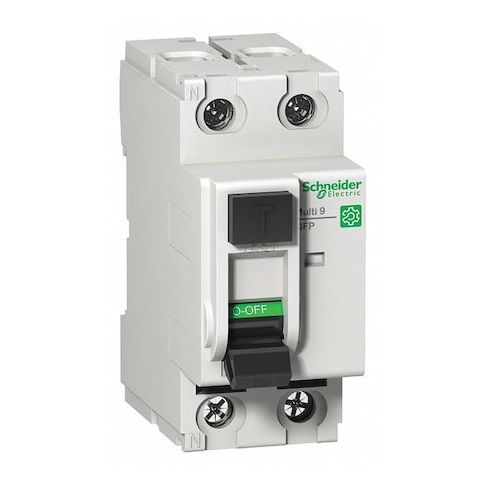

IEC Supplementary Protector, GFP Series, 25 A, 2 Pole, 240V AC, 1.5kA at 240V AC, A Curve
Protect your distribution panels with the Schneider GFP Series IEC Supplementary Protector, designed to provide reliable ground fault protection and thermal magnetic tripping. Rated for 25A at 240V AC, this 2-pole protector meets UL Type UL 1053 standards and features a toggle actuator for easy operation. Ideal for distribution applications, it offers a minimum wire size of 18 AWG and maximum wire size of 2 AWG, with a compact design measuring 3.19 inches in length and 1.42 inches in width. With its robust features and compact size, this protector is perfect for a variety of industrial and commercial applications.
Top product features:
- Protects against overcurrent and ground faults with 1.5kA at 240V AC short circuit current rating
- Provides ground fault protection with a rated residual current of 260 mA
- Offers a thermal magnetic trip type for reliable circuit interruption
Top product applications:
- Distribution
- Ground Fault Protection
- Circuit Breaker
IEC Supplementary Protector, Amps 25 A, AC Voltage Rating 240V AC, Max. AIR Rating 1.5kA at 240V AC, Series GFP, Curve Type A, DC Voltage Rating Not Rated, Number of Poles 2, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1053, Terminal Connection Tunnel, Rated Residual Current 260 mA, Trip Type Thermal Magnetic, Application Distribution, Ground Fault Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 1.42 in
Additional Information
- Country of Origin: ES
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 3.50
- Package Height: 3.30
- Package Weight: 0.45
Product info last updated on May 20, 2026 1:18am UTC
Category: Circuit Protection
