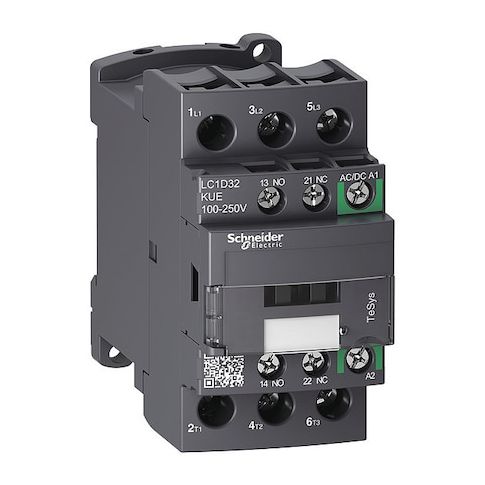

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32KUE

• The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electrical switching device (TeSys Deca series) rated for controlling motor and resistive loads within specified parameters. It operates with a coil voltage of 100–250 V AC/DC as specified to energize or de-energize the main contacts and features two auxiliary contacts (1NO/1NC) for signaling or control circuits. The unit employs screw clamp terminals and is rated for operation at voltages up to 690 V within the specified ratings, with a 50/60 Hz operating capability. It does not include a surge suppressor or enclosure

• compatibility should be verified for specific applications.

  Key features

• - Poles: 3
• Reversing: Non-Reversing
• Phase: Three
• - Coil voltage: 100–250 V AC/DC
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Electrical connections: Screw Clamp Terminals
• - Enclosure: No Enclosure
• IP20
• - Series: TeSys Deca
• - Max voltage: 690 V
• - Power/current ratings: Resistive up to 50 A
• Inductive up to 32 A under standard test conditions
• - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
• - Fire rating: UL 94 V1
• - Mechanical/Electrical durability: 15 Mcycles (mechanical)
• 2,100,000 cycles (electrical)
• - Dimensions (approx.): Depth 3.62 in
• Height 3.35 in
• Width 1.77 in
• - Weight: 0.438 kg
• - Other: Impulse withstand voltage: Up to 6 kV according to testing standards
• Embedded surge suppressor: No
• Maximum operating temperature: 140 °F
• Max. Temperature: 850 °C
