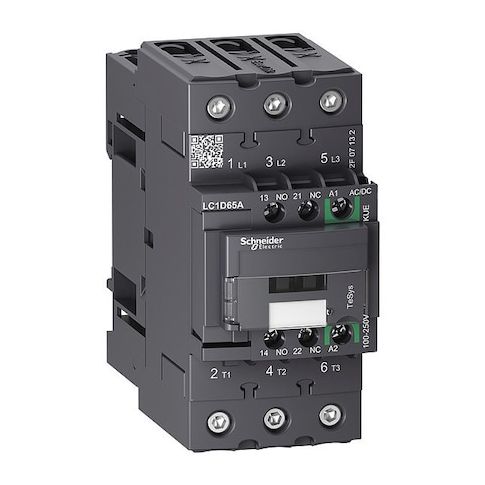

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65AKUE
Free Shipping
In Stock
The TeSys Deca IEC Magnetic Contactor is a versatile and reliable device used to switch power circuits in electrical control systems. Its 100-250V coil and 3-pole, non-reversing design make it suitable for a wide range of applications, including industrial automation, HVAC, and power distribution. With a high making capacity and durable construction, this contactor can handle heavy loads and withstand harsh environments. Its compact design and screw clamp terminals make it easy to install and maintain, making it an ideal choice for control systems that require a reliable and efficient switching solution.
Top product features:
- The IEC Magnetic Contactor is a three-pole, non-reversing device used to switch power circuits in electrical control systems.
- It features a 1NO/1NC auxiliary contact arrangement, providing two total auxiliary contacts with one normally open and one normally closed.
- It operates at 50/60 Hz and is rated for operation within the specified voltage range of 690 V.
Top product applications:
- Industrial control systems
- Electrical panel building
- Machine control systems
The IEC Magnetic Contactor is a TeSys Deca three-pole, non-reversing device used to switch power circuits in electrical control systems. It features a 100–250 V coil (AC/DC) and a 1NO/1NC auxiliary contact arrangement (2 total), with three normally open main contacts. The unit operates at 50/60 Hz and is rated for operation within the specified voltage range of 690 V. It is compatible with DIN rail or plate mounting as specified and supplied without an enclosure.
Key features
- - Coil Voltage: 100–250 V AC/DC
- - Poles/Main Contacts: 3 poles
- 3 normally open main contacts
- Reversing: Non-Reversing
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Terminals: Control Circuit—Screw Clamp
- Power Circuit—EverLink BTR
- - Enclosure/Mounting: IP20
- No Enclosure
- Mounting on DIN Rail or Plate
- - Series/Voltage: TeSys Deca
- Rated Voltage: 690V AC
- 50/60 Hz
- - Ratings: Full Load Amps (Inductive 65 A, Resistive 80 A)
- Rated Making Capacity—1000 A @ 440V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Durability: Mechanical 6 Mcycles
- Electrical 1.8 Mcycles
- - Included: Everlink Power Connections
- Protective Cover
- - Weight/Dimensions: Net weight 1.002 kg
- Depth 4.72 in
- Height 4.8 in
- Width 2.17 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 5.50
- Package Height: 2.40
- Package Weight: 2.36
