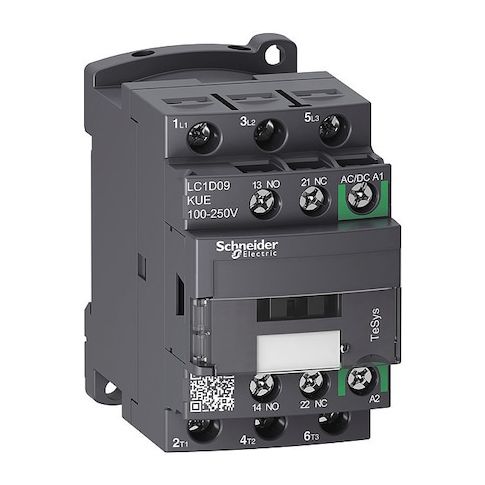

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09KUE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load applications. Its 3-pole, non-reversing design ensures smooth and consistent operation, while its screw clamp terminals and compact dimensions make it easy to integrate into any system. With a wide voltage range and high making capacity, this contactor is ideal for use in industrial settings, such as manufacturing, HVAC, and power distribution. Its durable design and long lifespan make it a cost-effective choice for applications where reliability and efficiency are paramount.
Top product features:
- The product features a 3-pole non-reversing configuration.
- It has two auxiliary contacts configured as 1NO/1NC.
- It is rated for operation up to 690 V AC within specified conditions.
Top product applications:
- Motor Control
- Resistive-Load Applications
- Industrial Automation
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electromagnetically operated switch rated for operation within specified motor control and resistive-load application parameters. It uses a coil voltage range of 100–250 V AC/DC and features two auxiliary contacts configured as 1NO/1NC. The device uses screw clamp terminals and is part of the TeSys Deca family, rated for operation up to 690 V AC within specified conditions, with a 50/60 Hz operating frequency.
Key features
- - Poles/contacts: 3 main poles
- 3 normally open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Coil voltage: 100–250 V AC/DC
- - Reversing: Non-Reversing
- - Electrical ratings: rated for operation up to 690 V AC within specified conditions
- 50/60 Hz
- Rated making capacity up to 250 A at 440 V under standard test conditions
- Full load currents of up to 20 A resistive and 9 A inductive loads within specified ratings
- - Mechanical/thermal: Mechanical durability 15 Mcycles
- Electrical operating durability 2,400,000 cycles
- - Physical/dimensions: Width 1.77 in
- Height 3.03 in
- Depth 3.39 in
- Net weight 0.368 kg
- IP20
- No enclosure
- - Mounting/installation: Mounting style DIN Rail, Plate
- Mounts on Plate, Rail
- Screw Clamp terminals
- - Series/standards: TeSys Deca
- Standards include UL Listed and EN/IEC 60947-4-1, EN/IEC 60947-5-1
- - Other features: Includes protective cover
- Does not include an integrated surge suppression device
- Fire rating: UL 94 V1
- - Phase/frequency: Three-phase
- 50/60 Hz
- - Temperature ratings: Rated for operation within the specified temperature ranges
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.90
- Package Height: 2.20
- Package Weight: 0.85
