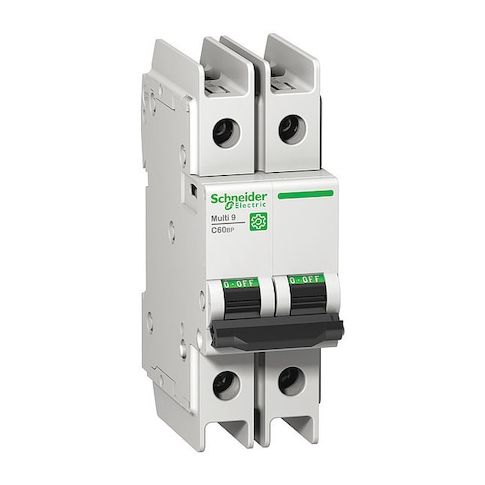

IEC Miniature Circuit Breaker, MULTI9 Series, 5A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve MPN:M9F42205
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6569320
IEC Miniature Circuit Breaker, MULTI9 Series, 5A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve
Protect your electrical systems with the Schneider MULTI9 Series Miniature Circuit Breaker, designed for reliable branch circuit protection. This 5A, 2-pole breaker is suitable for a wide range of applications, including commercial and industrial settings, and can handle 240/415/440V AC voltages. With a maximum short-circuit current rating of 14kA at 240V AC, it provides robust protection against electrical surges. The C Curve breaker offers a high level of sensitivity, while the thermal magnetic trip ensures reliable operation. Easy to install on DIN rail, this breaker is ideal for use in a variety of applications, including lighting, heating, and power distribution.
Top product features:
- Protects branch circuits from overload and short circuits
- Detects and responds to thermal and magnetic faults
- Mounts on DIN rail for compact and space-efficient installation
Top product applications:
- Branch Circuit Protection
- Circuit Breaker Mounting Style DIN Rail
- Application for UL Type UL 489
IEC Miniature Circuit Breaker, Amps 5 A, Number of Poles 2, Curve Type C, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 1, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 1.42 in, Depth 2.83 in, Frame Size 63A/C60BP
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.50
- Package Height: 3.50
- Package Weight: 0.55
Product info last updated on March 4, 2026 4:01am UTC
Category: Circuit Protection
