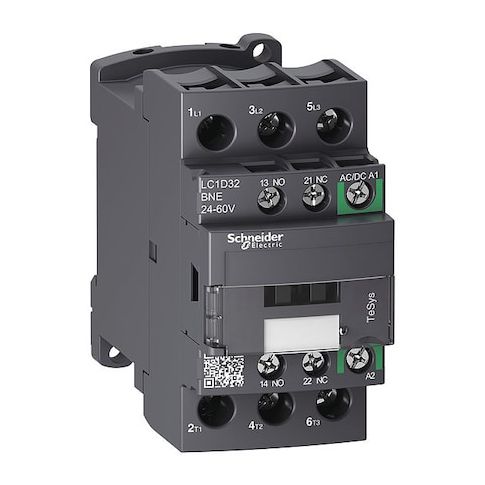

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32BNE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various applications. Suitable for use in motor control and resistive loads, this 3-pole, non-reversing device offers 1NO/1NC auxiliary contacts and a wide coil voltage range of 24 to 60 V AC/DC. Its compact design and easy installation make it ideal for panel-mounted applications in industries such as manufacturing, HVAC, and water treatment. With its high-quality construction and durable materials, this contactor ensures safe and reliable operation, making it an excellent choice for a wide range of applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 1NO/1NC auxiliary contacts, providing two separate contact points for controlling and monitoring the circuit.
- The unit features a coil voltage range of 24 to 60 V AC/DC, allowing for flexible operation in a variety of applications.
- The TeSys Deca contactor is designed with a non-reversing mechanism, ensuring that the device operates in a consistent and predictable manner.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device (TeSys Deca) rated for use in controlling power circuits with motor control and resistive loads. It features 1NO/1NC auxiliary contacts and a coil voltage range of 24 to 60 V AC/DC. The unit uses screw clamp terminals and is intended for panel-mounted applications conforming to IEC standards.
- Coil voltage: Rated for operation within the specified voltage ranges
- - Auxiliary contacts: 1NO/1NC (2 total)
- - Main contacts: 3 poles
- 3 normally open
- - Reversing: Non-Reversing
- - Phase/Series/Frame: Three phase
- TeSys Deca
- TeSys
- - Maximum voltage: Rated for operation at voltages up to specified maximums
- Frequency: 50/60 Hz
- - Full Load Amps: Rated current values based on standard testing conditions
- - Electrical connection: Suitable for wiring within specified parameters
- - Enclosure: Designed with an IP20 rating
- proper installation required to ensure safety
- - Embedded surge suppressor: Not equipped with built-in surge suppression capabilities
- - Mounting: DIN Rail, Plate
- - Protective cover: Included
- - Impulse withstand: Meets impulse withstand specifications as per applicable standards but does not guarantee protection against all transient events.
- - Max temperatures: Max operating temperature according to specifications.
- - Max operating temperature: Rated for operation within the specified ambient temperature range.
- - Standards: Complies with recognized safety standards when installed correctly but does not imply certification guarantees performance under all conditions.
- - Net weight and dimensions correspond to a compact DIN-rail/plate-mountable device
- - Tag/Series: TeSys Deca
- 3 poles
- Three-phase, non-reversing
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 1.05
