IEC Miniature Circuit Breaker, MULTI9 Series, 25A, 2 Pole, 240/415/440V AC, 14kA at 240V AC MPN:M9F42225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6556617

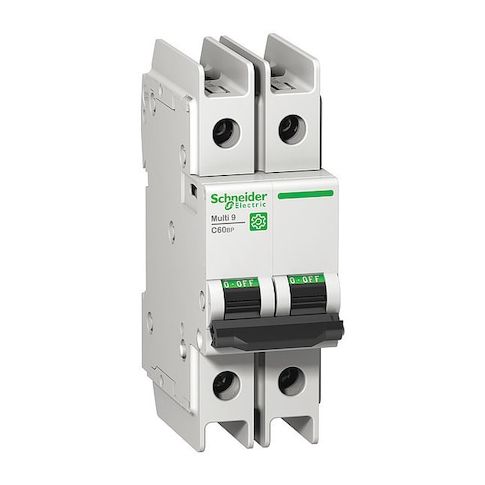

IEC Miniature Circuit Breaker, MULTI9 Series, 25A, 2 Pole, 240/415/440V AC, 14kA at 240V AC
Protect your electrical systems with the Schneider MULTI9 Series IEC Miniature Circuit Breaker, designed for branch circuit protection. This 25A, 2-pole circuit breaker is rated for 240/415/440V AC and features a 14kA short-circuit rating. Its thermal-magnetic trip ensures reliable operation, while its screw clamp terminal connection and DIN rail mounting make installation easy. Suitable for a variety of applications, including commercial and industrial settings, this circuit breaker provides peace of mind with its UL 489 certification and meets the needs of electrical engineers and contractors alike. Its compact design (4.06 x 1.42 x 2.83 in) makes it ideal for space-constrained areas.
Top product features:
- Protects branch circuits against overloads and short circuits
- Provides thermal and magnetic trip types for customizable protection settings
- Mounts on DIN rail for easy installation and space efficiency
Top product applications:
- Branch Circuit Protection
- Circuit Breaker Mounting Style DIN Rail
- Application Branch Circuit Protection
IEC Miniature Circuit Breaker, Amps 25 A, Number of Poles 2, Curve Type C, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 1, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 1.42 in, Depth 2.83 in, Frame Size 63A/C60BP
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.50
- Package Height: 3.50
- Package Weight: 0.60
Product info last updated on March 12, 2026 3:08pm UTC
Category: Circuit Protection
