IEC Miniature Circuit Breaker, MULTI9 Series, 25A, 2 Pole, 240/415/440V AC, 14kA at 240V AC MPN:M9F43225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6556300

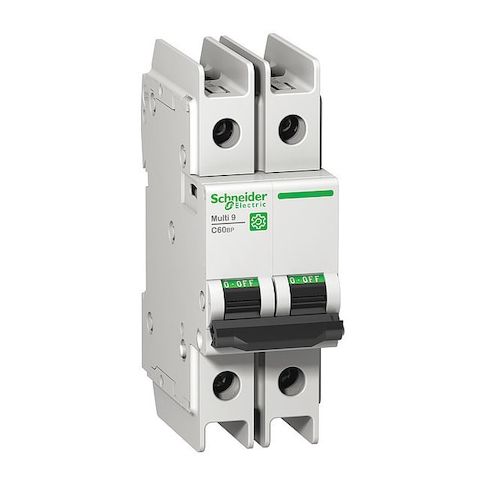

IEC Miniature Circuit Breaker, MULTI9 Series, 25A, 2 Pole, 240/415/440V AC, 14kA at 240V AC
Protect your electrical systems with the Schneider MULTI9 Series IEC Miniature Circuit Breaker, designed for reliable branch circuit protection. Suitable for 240/415/440V AC applications, this 25A, 2-pole circuit breaker features a thermal magnetic trip type and meets UL Type UL 489 standards. With a maximum short-circuit current of 14kA at 240V AC, it ensures safe and efficient operation. Ideal for use in commercial and industrial settings, this circuit breaker is suitable for applications such as lighting, heating, and power distribution. Its compact design and easy installation make it a convenient choice for electrical engineers and contractors.
Top product features:
- Protects branch circuits against overcurrent conditions with a 25A rating
- Protects against both thermal and magnetic trip types for reliable circuit protection
- Mounts on DIN rail for easy installation and space-saving design
Top product applications:
- Branch Circuit Protection
- DIN Rail
- UL Type UL 489
IEC Miniature Circuit Breaker, Amps 25 A, Number of Poles 2, Curve Type D, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 1, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 1.42 in, Depth 2.83 in, Frame Size 63A/C60BP
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.60
- Package Height: 2.20
- Package Weight: 0.60
Product info last updated on February 10, 2026 7:35pm UTC
Category: Circuit Protection
