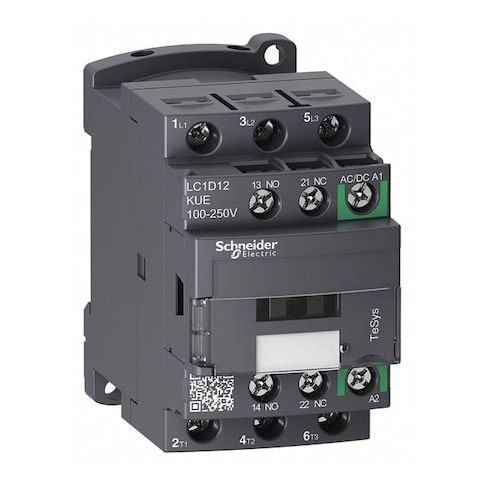

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12KUE
Free Shipping
In Stock
The Schneider Electric TeSys Deca IEC Magnetic Contactor is a reliable and versatile solution for controlling power circuits in IEC-standard control systems. This three-pole, non-reversing device is designed for use in a variety of applications, including industrial automation, HVAC, and commercial electrical systems. With its ability to handle 100-250V AC/DC and screw clamp terminals, it provides a secure and efficient connection. The device's compact size and lightweight design make it easy to integrate into existing systems, while its compliance with UL, EN/IEC 60947-4-1, and EN/IEC 60947-5-1 standards ensures safe and reliable operation.
Top product features:
- Three-pole, non-reversing, electrically operated switch used to control power circuits in IEC-standard control systems.
- Includes two auxiliary contacts (1NO/1NC) for additional control functionality.
- Operates within the specified voltage ranges of 100–250 V AC/DC using screw clamp terminals.
Top product applications:
- Industrial control systems
- Power distribution and control panels
- Machine control and automation systems
Schneider Electric TeSys Deca IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch used to control power circuits in IEC-standard control systems. It is rated for operation within the specified voltage ranges of 100–250 V AC/DC and uses screw clamp terminals. The device includes two auxiliary contacts (1NO/1NC) and is configured as a 3-pole, 3-phase device that does not include an integrated surge suppression feature and has no enclosure.
Key features
- - Poles: 3
- Reversing: Non-Reversing
- - Coil Voltage: 100–250 V AC/DC
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Connection: Screw Clamp Terminals
- - Frame/Series: TeSys Deca (TeSys)
- - Rated Voltage: 690 V AC
- Frequency: 50/60 Hz
- - Full Load Amps: Rated for applications within the specified current ratings of inductive 12 A and resistive 25 A at their respective voltages
- - Enclosure: The device is provided without an enclosure
- - IP Rating: IP20
- - Dimensions: 1.77 in W × 3.03 in H × 3.38 in D
- Net Weight: 0.373 kg
- - Standards: Complies with listed standards UL, EN/IEC 60947-4-1, and EN/IEC 60947-5-1 (compliance subject to proper installation and use)
- - Other: Impulse Withstand Voltage 6 kV
- Non-Overlap Time 1.5 ms
- Shocks 15 G (closed) / 10 G (open)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 0.85
