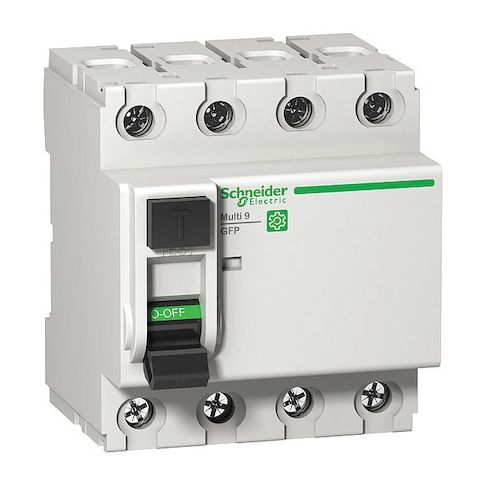

IEC Supplementary Protector, GFP Series, 40 A, 4 Pole, 240V AC, 10kA at 240V AC, A Curve MPN:M9R81440
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6555348
IEC Supplementary Protector, GFP Series, 40 A, 4 Pole, 240V AC, 10kA at 240V AC, A Curve
Protect your electrical distribution systems with the Schneider GFP Series IEC Supplementary Protector. This reliable device provides 40A of protection in a 4-pole, 240V AC configuration, with a maximum air rating of 10kA at 240V AC. Suitable for applications such as ground fault protection in distribution boards, it features a thermal-magnetic trip mechanism and a rated residual current of 26mA. With a compact design and DIN rail mounting, this protector is ideal for use in commercial and industrial settings, ensuring safe and efficient electrical operation. Its robust construction and reliable performance make it a valuable addition to any electrical distribution system.
Top product features:
- Provides ground fault protection
- Protects against thermal and magnetic overload
- Supports up to 40A of current
Top product applications:
- Distribution
- Ground Fault Protection
- Circuit Breaker Actuator Toggle
IEC Supplementary Protector, Amps 40 A, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, Series GFP, Curve Type A, DC Voltage Rating Not Rated, Number of Poles 4, Phase 3, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1053, Terminal Connection Tunnel, Rated Residual Current 26 mA, Trip Type Thermal Magnetic, Application Distribution, Ground Fault Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 2.83 in
Additional Information
- Country of Origin: ES
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.20
- Package Height: 3.40
- Package Weight: 0.85
Product info last updated on February 3, 2026 6:32am UTC
Category: Circuit Protection
