IEC Supplementary Protector, GFP Series, 25 A, 4 Pole, 240V AC, 10kA at 240V AC, A Curve MPN:M9R81425
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6550597

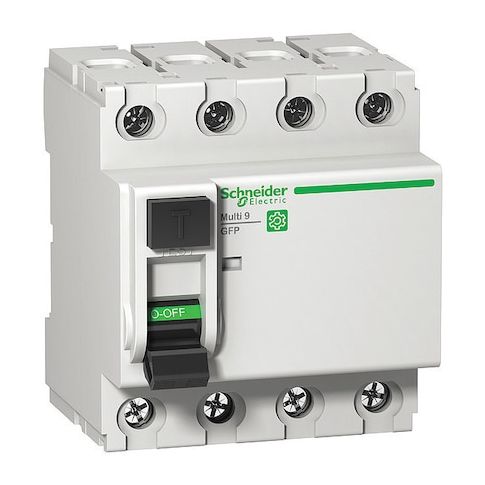

IEC Supplementary Protector, GFP Series, 25 A, 4 Pole, 240V AC, 10kA at 240V AC, A Curve
Protect your distribution systems with the Schneider GFP Series IEC Supplementary Protector, designed for reliable ground fault protection in a variety of applications. This 25A, 4-pole device is rated for 240V AC and features a 10kA maximum air rating. It meets UL Type UL 1053 and has a rated residual current of 26mA. Suitable for distribution systems, it offers thermal magnetic trip functionality and is compatible with 18-2 AWG wire sizes. Ideal for use in commercial and industrial settings, this protector provides peace of mind and helps prevent electrical hazards. Easy to install on DIN rail, it's a reliable solution for your electrical needs.
Top product features:
- Provides ground fault protection
- Protects against overcurrent with a maximum rating of 25 A
- Features a thermal magnetic trip type
Top product applications:
- Distribution
- Ground Fault Protection
- Circuit Breaker Mounting Style DIN Rail
IEC Supplementary Protector, Amps 25 A, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, Series GFP, Curve Type A, DC Voltage Rating Not Rated, Number of Poles 4, Phase 3, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1053, Terminal Connection Tunnel, Rated Residual Current 26 mA, Trip Type Thermal Magnetic, Application Distribution, Ground Fault Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 2.83 in
Additional Information
- Country of Origin: ES
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.00
- Package Height: 3.30
- Package Weight: 0.80
Product info last updated on April 27, 2026 7:29am UTC
Category: Circuit Protection
