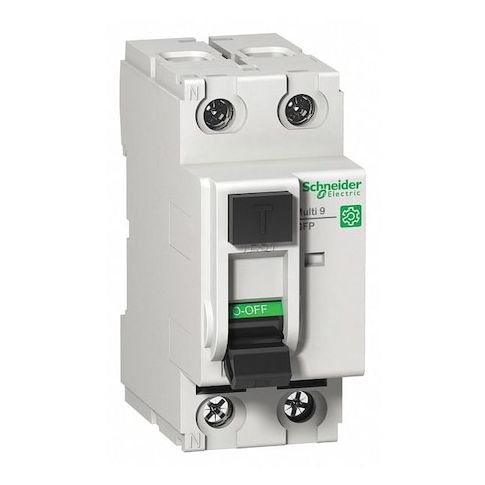

IEC Supplementary Protector, GFP Series, 63 A, 2 Pole, 240V AC, 10kA at 240V AC, A Curve MPN:M9R81263
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6549501
IEC Supplementary Protector, GFP Series, 63 A, 2 Pole, 240V AC, 10kA at 240V AC, A Curve
This IEC Supplementary Protector from Schneider is a reliable solution for distribution and ground fault protection in various applications. With a rating of 63 A and 240V AC, it provides robust protection against short circuits and overcurrents. The GFP Series features a thermal-magnetic trip type and a residual current rating of 26 mA, ensuring safe and efficient operation. Suitable for use in distribution boards and other applications, this protector meets UL Type UL 1053 standards and is compatible with 18 AWG to 2 AWG wire sizes. Its compact design and DIN rail mounting make it an ideal choice for a wide range of electrical installations.
Top product features:
- Provides 63 A of current protection
- Offers 10kA of maximum air rating at 240V AC
- Protects against ground faults with a rated residual current of 26 mA
Top product applications:
- Distribution
- Ground Fault Protection
- Circuit Breaker
IEC Supplementary Protector, Amps 63 A, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, Series GFP, Curve Type A, DC Voltage Rating Not Rated, Number of Poles 2, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1053, Terminal Connection Tunnel, Rated Residual Current 26 mA, Trip Type Thermal Magnetic, Application Distribution, Ground Fault Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 1.42 in
Additional Information
- Country of Origin: ES
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.30
- Package Height: 1.60
- Package Weight: 0.45
Product info last updated on February 28, 2026 7:53am UTC
Category: Circuit Protection
