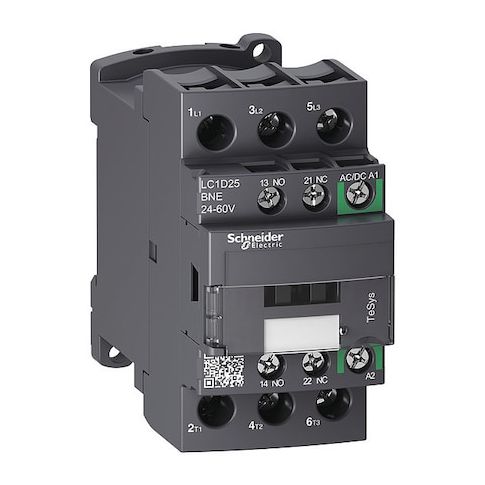

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25BNE
Free Shipping
In Stock
This Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Its 3-pole, non-reversing design and screw clamp terminals make it easy to install and integrate into existing systems. The contactor's high inrush and holding capacities ensure smooth and reliable operation, even in demanding conditions. Suitable for use in various industries, including manufacturing, oil and gas, and renewable energy, this contactor provides a cost-effective and durable solution for controlling electrical circuits and protecting equipment.
Top product features:
- Switches electrical loads within specified parameters
- Has auxiliary contacts rated for specified electrical loads
- Has a protective cover with an IP20 enclosure rating
Top product applications:
- General Lighting Control
- Motor Control
- Power Distribution
This Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a 3-pole, non-reversing device rated for switching within specified electrical parameters. It is designed for operation with coil voltages between 24 and 60 V (AC/DC). It contains auxiliary contacts rated for specified electrical loads. It features an IP20 enclosure with a protective cover and is suitable for use within the specified voltage ratings and load types as per manufacturer specifications. Compatible with mounting methods such as DIN rail or plate, according to installation guidelines.
- Coil voltage: Rated coil voltage: 24–60 V AC/DC
- - Auxiliary contacts: Included
- ratings should be verified for specific applications
- - Main/auxiliary configuration: Configured as a non-reversing device with three poles
- - Terminals: Screw clamp terminals suitable within specified wire ranges
- - Series/standards: Conforms to applicable standards listed but does not imply certification beyond those standards
- - Enclosure and mounting: IP20 enclosure rating
- compatible with mounting methods such as DIN rail or plate, according to installation guidelines
- - Maximum voltage and current: Rated for maximum voltage up to approximately 690 V AC
- Full Load Amps: 25 A (Inductive), 40 A (Resistive) under standard conditions
- - Making capacity: Capacities are based on tested conditions but do not guarantee performance under all circumstances
- - Mechanical/Electrical durability: Durability figures are based on testing cycles under specific test conditions, not indicative of lifespan in all environments
- - Inrush/holding and loss: Power consumption figures specify typical values during operation but do not guarantee performance or safety margins
- - Frequency: 50/60 Hz
- Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- - Physical size and weight: Width 1.77 in
- Depth 3.62 in
- Height 3.35 in
- Net Weight 0.433 kg (dimensions approximate)
- - Other specs: Impedance 2 mΩ
- Signalling Circuit: 25 to 400 Hz
- Insulation: Rated Insulation Volts 690 V
- Reversing: No
- Fire Rating: UL 94 V1
- Shock/Vibration: 8 G (Open), 15 G (Closed)
- Operating Times: 45–55 ms (Closing), 20–90 ms (Opening)
- Protective Cover: Yes
- - Certifications and compliance: The listed ratings do not imply certification or compliance beyond stated standards
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.90
- Package Height: 2.30
- Package Weight: 1.00
