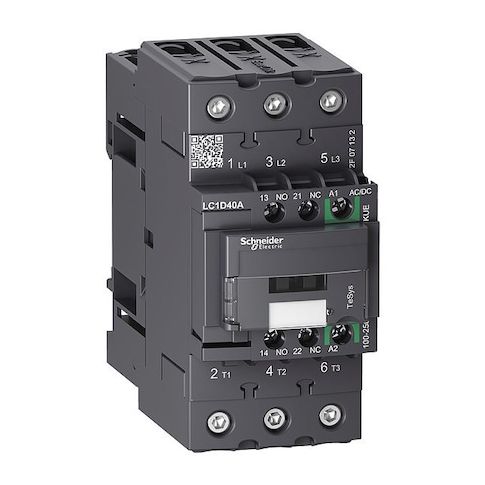

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AKUE

• Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with 1NO/1NC auxiliary contacts. It uses a coil voltage of 100–250 V AC/DC and is rated for operation within specified motor control and resistive-load application parameters.

  - Coil Voltage: 100–250 V AC/DC

• - Poles/Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 2 total
• configuration 1NO/1NC
• - Reversing: Non-Reversing
• - Frequency: 50/60 Hz
• - Rated Voltage: 690 V AC
• - Full Load Amps: Resistive 60 A
• Inductive 40 A
• - Rated Making Capacity: 800 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
• - Electrical Operating Durability: 2,000,000 (Power Circuit)
• 700,000 (Signalling Circuit)
• - Mechanical Durability: 6 Mcycles
• - Impulse Withstand Voltage: 6 kV
• - Enclosure / IP: Open design
• IP20 rating, suitable for indoor environments
• - Dimensions: Depth 4.72 in
• Height 4.8 in
• Width 2.17 in
• - Net Weight: 0.992 kg
• - Mounting: DIN Rail, Plate
• - Environmental: Mercury Free
• Pollution Degree 3
• - Wiring: Compatible with standard wiring connections
• optional protective covers as applicable
• - Standards: UL Listed, CE, CSA, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, KC, UKCA
• - Phase: Three
• - Impedance: 1.5 mΩ
• - Hold VA: 1.8 VA
• - Inrush VA: 18 VA
• - Switching: Signalling Circuit 5 mA
• 17 V
• - Non-Overlap Time: 1.5 ms
• - Overvoltage Category: CAT III
• - Maximum Temperature: maximum temperature ratings are based on standard operating conditions (note: actual device temperature limits should be verified)
• - Maximum Operating Temperature: 140°F
• - Maximum Voltage Rating: 690 V AC
• - Releasable / Non-Reversing: Non-Reversing
• - Fuse Amps / Protection: Not listed (include if needed)
