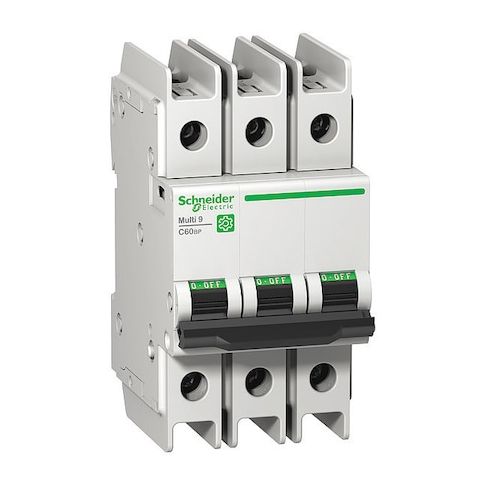

IEC Miniature Circuit Breaker, MULTI9 Series, 40A, 3 Pole, 240/415/440V AC, 10kA at 240V AC MPN:M9F43340
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6536317
IEC Miniature Circuit Breaker, MULTI9 Series, 40A, 3 Pole, 240/415/440V AC, 10kA at 240V AC
Protect your electrical systems with the IEC Miniature Circuit Breaker, a reliable and efficient solution for branch circuit protection. With a 40A rating and 3-pole design, this breaker is suitable for a variety of applications, including commercial and industrial settings. Its thermal magnetic trip type ensures safe and effective operation, while its screw clamp terminal connection and DIN rail mounting make installation easy. The breaker meets UL Type UL 489 standards and has a maximum AIR rating of 14kA, making it an ideal choice for applications where high current and reliability are crucial.
Top product features:
- 3 Pole design for protection of three-phase circuits
- Thermal magnetic trip type for reliable and sensitive overload protection
- Screw clamp terminal connection for easy and secure wiring
Top product applications:
- Branch Circuit Protection
- DIN Rail Mounting
- UL Type UL 489
IEC Miniature Circuit Breaker, Amps 40 A, Number of Poles 3, Curve Type D, AC Voltage Rating 240V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 3, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 4.06 in, Width 2.13 in, Depth 2.83 in, Frame Size 63A/C60BP, Circuit Breaker Actuator Toggle
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.00
- Package Height: 2.20
- Package Weight: 0.85
Product info last updated on March 1, 2026 3:07pm UTC
Category: Circuit Protection
